Overview of Texas Instruments ULQ2003ADR

The Texas Instruments ULQ2003ADR is a high-voltage, high-current Darlington transistor array designed for interfacing between low-level logic circuitry and multiple peripheral power loads. This robust component is part of the ULx200xA family, which is renowned for its ability to drive inductive loads such as relays, solenoids, stepping motors, and other high-current/high-voltage loads in a wide variety of industrial and consumer applications.

Key Features

• Seven Darlington Pairs: Each ULQ2003ADR chip contains seven independent Darlington pairs with common emitters, allowing for the simultaneous control of multiple outputs.
• High-Voltage Outputs: The output rating can sustain up to 50V, catering to a broad range of applications.
• High Current Rating: Each channel can handle a continuous current of 500 mA, with peak currents up to 600 mA, making it suitable for driving a variety of loads.
• Output Clamp Diodes: The inclusion of integral suppression diodes for inductive load transient suppression adds to the robustness of the device.
• Wide Operating Temperature Range: The device can operate effectively across a temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.

Applications

The ULQ2003ADR is highly versatile and is used in numerous applications, including:

• Relay drivers
• Stepper motor drivers
• LED displays/LED matrix management
• Buffer drivers
• Line drivers
• Logic systems
• Peripheral drivers

Package and Quality

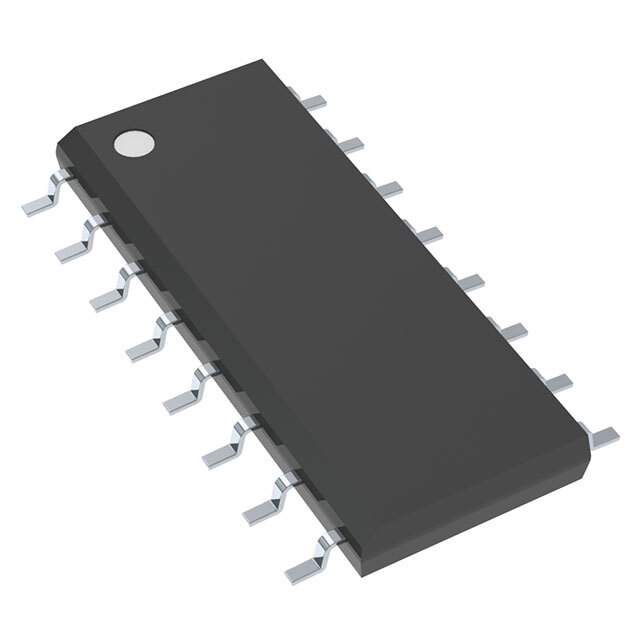

The ULQ2003ADR comes in a SOIC-16 (Surface-Mount Device) package, which is ideal for space-constrained applications. Texas Instruments ensures high manufacturing standards, providing a reliable and consistent performance for each unit produced. The device also meets or exceeds the requirements of the Joint Electron Device Engineering Council (JEDEC) standard.

For engineers and designers looking for a reliable solution to interface logic signals to high-power devices, the Texas Instruments ULQ2003ADR offers a compact, efficient, and robust option that simplifies the design and enhances the performance of a wide array of electronic systems.
