FTDI FT4232HL-REEL USB Interface IC

The FT4232HL-REEL from FTDI, Future Technology Devices International Ltd, is a versatile USB to serial/multi-protocol interface IC that offers a high level of integration and functionality. This high-quality component is designed to facilitate USB connectivity for a wide range of applications, including industrial control systems, instrumentation, and communications interfaces.

Key Features

• USB 2.0 Hi-Speed Compatible: The FT4232HL-REEL operates at USB 2.0 Hi-Speed (480 Mb/s), ensuring fast data transfer rates, which is essential for applications requiring high-speed serial communication.
• Quad-Channel Interface: This IC features four independent channels, each configurable for various serial interface protocols, including UART, FIFO, and JTAG, providing flexibility for multiple device connections.
• Flexible Configuration: Each channel can be independently configured using EEPROM or via the USB configuration descriptor, allowing for a wide range of options and adjustments to fit specific needs.
• Integrated Clock Circuit: The device includes an integrated clock generator, eliminating the need for an external clock, which simplifies the design and reduces the bill of materials.
• Comprehensive Operating System Support: Drivers are available for most modern operating systems, including Windows, Mac OS, Linux, and Android, ensuring compatibility across various platforms.

Package and Supply

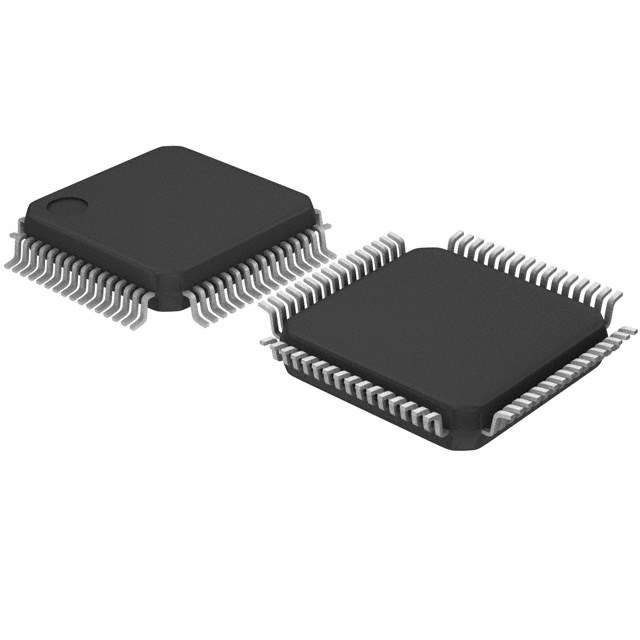

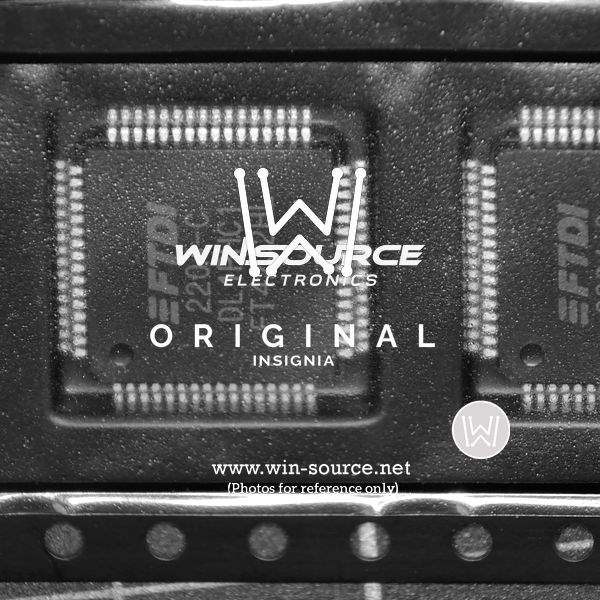

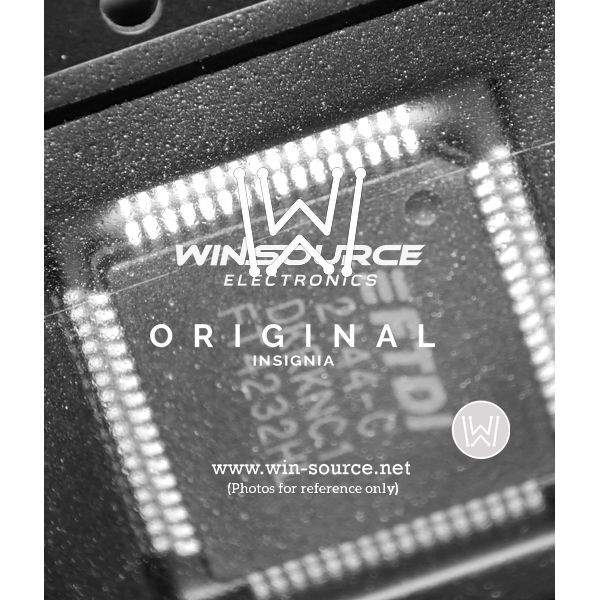

The FT4232HL-REEL comes in a compact, lead-free QFN-64 package, making it suitable for space-constrained applications. It is supplied in tape and reel packaging, which is ideal for automated assembly processes, enhancing production efficiency.

Applications

With its robust feature set, the FT4232HL-REEL is well-suited for a range of applications, such as:

• USB to multiple serial interfaces
• USB instrumentation
• USB industrial control
• USB to JTAG interfaces
• High-speed data logging systems

Overall, the FT4232HL-REEL is a reliable and flexible solution for adding USB connectivity to a variety of electronic devices and systems, backed by FTDI's reputation for quality and support.
