The TLVH431AQDBZR from Texas Instruments is a high-quality, low-voltage adjustable precision shunt regulator. This device offers excellent temperature stability and output voltage precision, making it ideal for a wide range of applications that require a reliable voltage reference.

Key Features

• Adjustable Output Voltage: This device provides an adjustable output voltage from 1.24V to 18V, allowing for flexibility across various applications.
• Low Dynamic Impedance: With a dynamic impedance of 0.22Ω, the TLVH431AQDBZR ensures stable operation even under varying load conditions.
• Temperature Stability: The voltage reference offers excellent stability over the full temperature range, ensuring consistent performance no matter the environment.
• Low Voltage Operation: It is designed for low voltage operation, with a minimum cathode voltage requirement of just 1.24V, which is beneficial for portable and battery-powered applications.

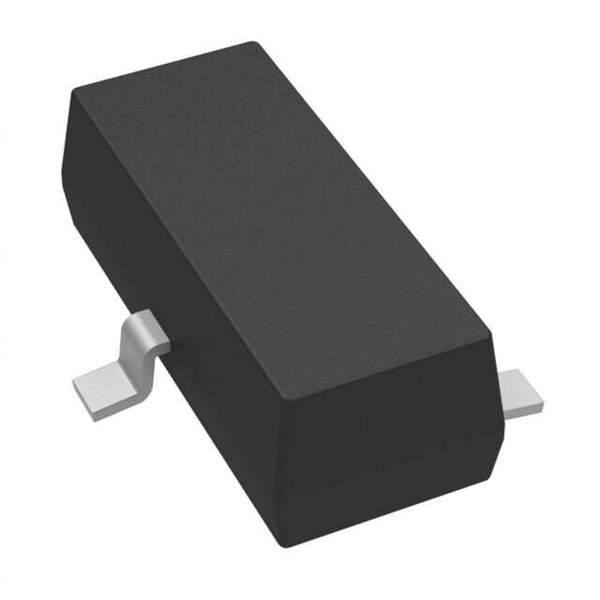

• Package: The device comes in a small outline transistor (SOT-23) package, which is ideal for space-constrained applications.

Applications

The TLVH431AQDBZR is versatile and can be used in numerous applications including:

• Power supplies
• Battery chargers
• Data acquisition systems
• Instrumentation
• Consumer electronics
• Automotive systems

Quality and Reliability

As a product of Texas Instruments, the TLVH431AQDBZR is manufactured to high standards, ensuring that it meets the rigorous requirements of industrial and commercial use. With its robust design and proven performance, this voltage reference is a reliable choice for engineers and designers looking for precise voltage control in their electronic designs.
