Product Overview: TCA9534APWR by Texas Instruments

The TCA9534APWR from Texas Instruments is a versatile, low-voltage 8-bit I²C and SMBus low-power I/O expander designed to provide general-purpose remote I/O expansion for most microcontroller families. This integrated circuit (IC) is particularly useful for applications where the microcontroller is limited in I/O pins and additional inputs/outputs are necessary, such as in keypad interfaces, sensor monitoring, and LED status signaling.

Key Features and Benefits

• I/O Expander: Adds an additional 8 I/O ports which can be configured as inputs or outputs, enhancing the interfacing capabilities of the host microcontroller.
• Low Power Consumption: Optimized for power-sensitive applications, this device features a low standby current, making it suitable for battery-powered and power-conscious designs.
• Flexible I²C Interface: The TCA9534APWR supports both I²C and SMBus interfaces, offering a fast mode (up to 400 kHz) and an address range that allows up to eight of these devices on the same bus.
• Interrupt Output: An interrupt output pin is provided to alert the host microcontroller of changes in the input ports, allowing for efficient resource management in the host system.
• Level Shifting: This IC can also perform level shifting, which allows it to interface with different logic levels, thus providing design flexibility across various platforms.
• Polarity Inversion: Input port polarity can be inverted, enabling easy adaptation to different types of sensors or inputs that require inverted logic levels.
• Robust Design: The device is designed to withstand transient excess voltage, enhancing system reliability.

Applications

The TCA9534APWR is suitable for a broad range of applications, including:

• Server Infrastructure
• Industrial Control Systems
• Consumer Electronics
• Home Automation
• Portable and Battery-Powered Devices

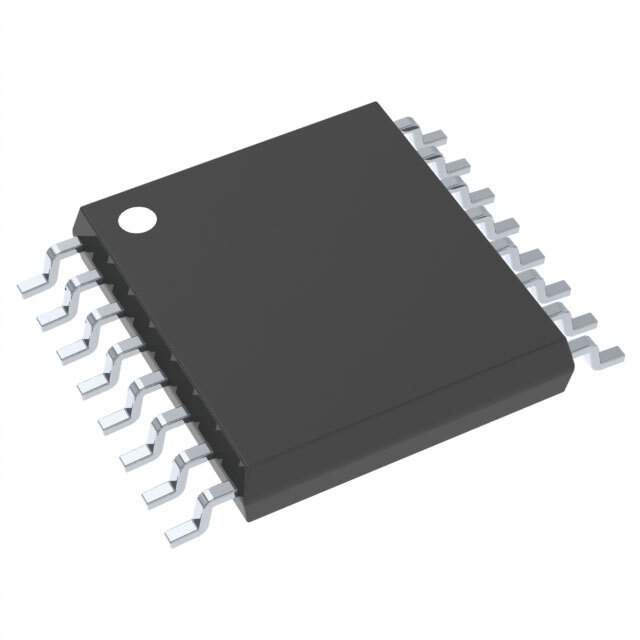

With its small form factor, the TCA9534APWR is available in a TSSOP (Thin Shrink Small Outline Package) 16-pin configuration, making it ideal for space-constrained applications. Texas Instruments ensures high-quality and reliability in their products, and the TCA9534APWR is no exception, providing a robust and flexible solution for I/O expansion needs.
