Product Overview

Product Name: SN74LVC1G97QDCKRQ1

Manufacturer: Texas Instruments

Description

The SN74LVC1G97QDCKRQ1 from Texas Instruments is a versatile, configurable multiple-function gate that is a part of their LVC (Low-Voltage CMOS) family. This product is designed to operate with a supply voltage range of 1.65V to 5.5V, making it suitable for interfacing with both 3.3V and 5V systems. The device is optimized for use in automotive applications and is AEC-Q100 qualified, ensuring its reliability and performance under the stringent conditions often found in automotive environments.

Equipped with a single gate that can be configured to provide one of seven different logic functions, the SN74LVC1G97QDCKRQ1 offers a high degree of flexibility in a compact package. The available logic functions include AND, OR, XOR, NAND, NOR, XNOR, and a buffer. Configuration is determined by the state of the input pins, eliminating the need for external components or complex programming.

Key Features

• Configurable Logic Gate: Offers seven different logic functions in a single device.
• Wide Voltage Range: Operates from 1.65V to 5.5V, compatible with various logic level standards.
• Automotive Qualified: Meets AEC-Q100 standards for automotive reliability and performance.
• Low Power Consumption: LVC technology ensures low power dissipation even at high speeds.
• High Drive Strength: Capable of driving up to +/-24 mA at the output, providing strong signal integrity.
• ESD Protection: Features robust electrostatic discharge (ESD) protection.

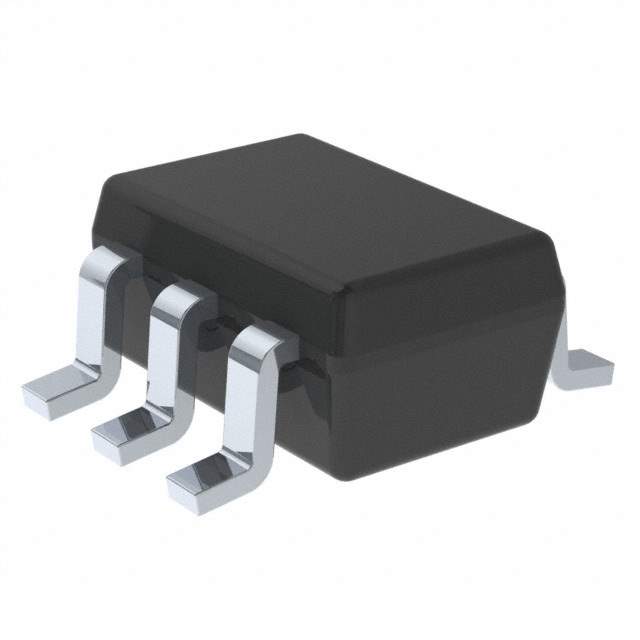

• Compact Package: Available in a small-outline, space-saving SC70 package.

Applications

With its flexible configuration and robust performance, the SN74LVC1G97QDCKRQ1 is ideal for a variety of applications, particularly in the automotive sector. Common uses include signal processing, control logic, and interface circuits, where space is at a premium and reliability is critical. Its wide voltage range and low power consumption also make it an excellent choice for battery-operated and portable devices.

Conclusion

The SN74LVC1G97QDCKRQ1 from Texas Instruments is a highly versatile, configurable logic gate that meets the rigorous demands of automotive applications. Its ability to perform multiple logic functions in a single device, coupled with its low power consumption and high drive strength, makes it a valuable component for designers looking to optimize their circuit designs.
