Product Overview: SN74LVC1G34DBVT

The SN74LVC1G34DBVT from Texas Instruments is a single-buffer gate designed to provide high-performance, power-efficient operation in a compact package. This device is part of the LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage systems. With its wide operating voltage range and low power consumption, the SN74LVC1G34DBVT is an ideal choice for portable and battery-powered applications, as well as for interfacing with microcontrollers and other digital systems.

Key Features:

• Operating Voltage: The device supports a wide voltage range from 1.65V to 5.5V, allowing flexibility in various operating environments and compatibility with both 3.3V and 5V logic levels.
• High Drive: Despite its low-power consumption, the SN74LVC1G34DBVT can drive up to 32 mA at the output, providing sufficient current for many digital applications.
• Low Power Consumption: This buffer gate is optimized for low dynamic power consumption, reducing the overall power requirements of the system it is integrated into.
• Schmitt-Trigger Input: The Schmitt-Trigger input of the SN74LVC1G34DBVT provides enhanced noise immunity and allows for slow input transition signals, making it suitable for noisy environments.
• ESD Protection: The device includes robust electrostatic discharge (ESD) protection, ensuring reliability and longevity even in harsh electrical environments.

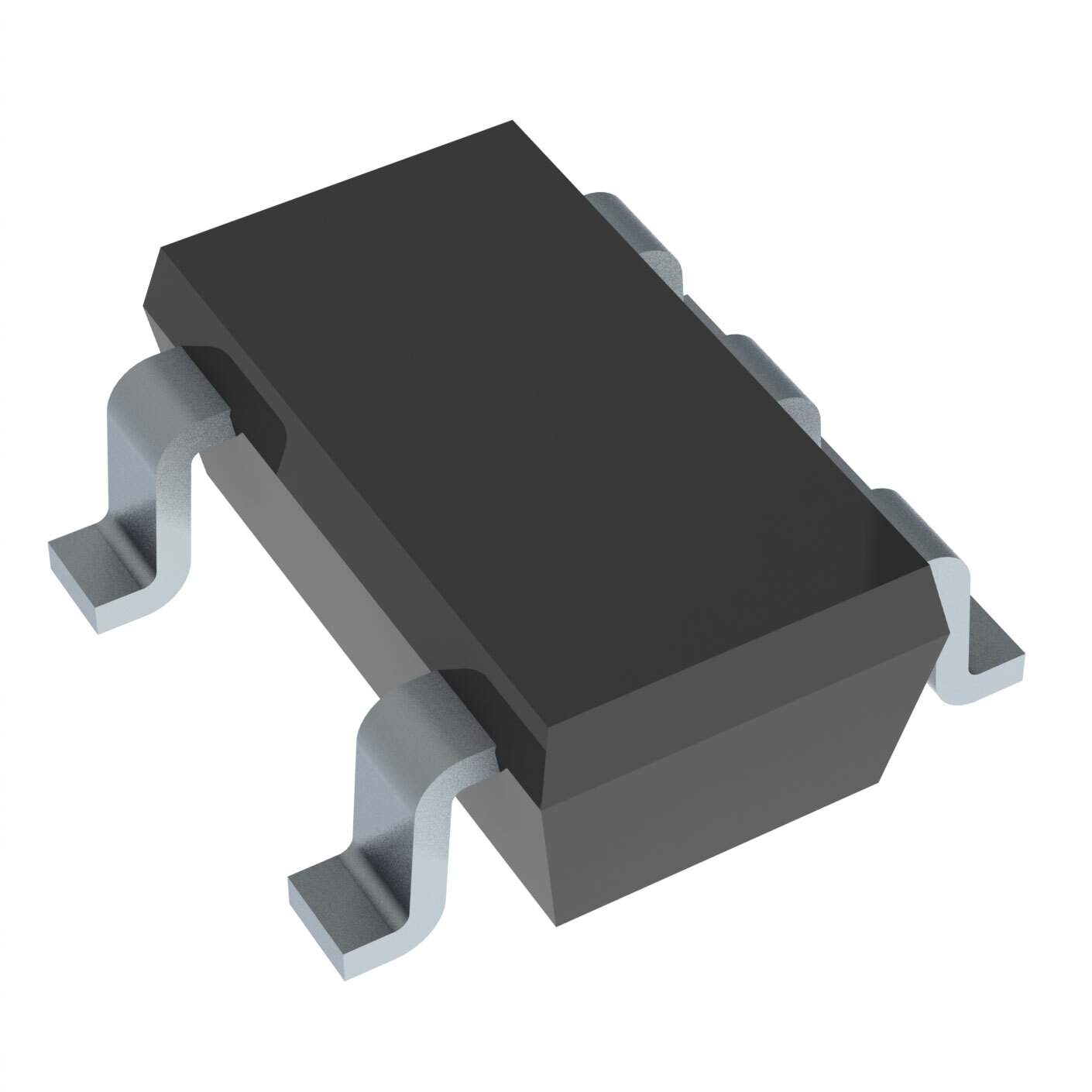

• Small Footprint: Offered in a compact SOT-23-5 package, the SN74LVC1G34DBVT saves valuable board space in space-constrained applications.

Applications:

The versatility and robustness of the SN74LVC1G34DBVT make it an excellent choice for a wide range of applications, including:

• Mobile Phones
• Portable Electronics
• Computing Devices
• Data Communication
• Signal Conditioning
• Logic Level Translation

In summary, the SN74LVC1G34DBVT from Texas Instruments is a reliable and efficient single-buffer gate that provides a simple solution for buffering and driving capabilities in various electronic systems. Its low-voltage operation, high drive strength, and compact size make it an excellent choice for designers looking to optimize their applications for performance and space.
