Product Overview: MSP430G2755IRHA40R

The MSP430G2755IRHA40R is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for low-power consumer electronics, industrial, medical, and wireless connectivity applications. This MCU is part of Texas Instruments' MSP430 family, which is renowned for its ultra-low power consumption and flexible clocking system, making it ideal for battery-powered and energy-harvesting applications.

Key Features

• Low Power Consumption: The MSP430G2755IRHA40R is designed for applications that require minimal power usage. With a variety of low-power modes, it ensures extended battery life in portable devices.
• 16-bit RISC Architecture: The device features a 16-bit RISC CPU, allowing for efficient processing and fast instruction execution, which is critical for real-time applications.
• Integrated Peripherals: It includes a range of integrated peripherals such as a 10-bit analog-to-digital converter (ADC), timers, and communication interfaces like SPI, I2C, and UART, adding to its versatility.
• Memory: The MSP430G2755IRHA40R comes with a generous 32KB of flash memory and 1KB of RAM, providing ample space for complex programs and data buffering.
• Flexible Clock System: The MCU offers a flexible clock system with a built-in digitally controlled oscillator (DCO) that allows the device to wake up from low-power modes to active mode in less than 1 µs.

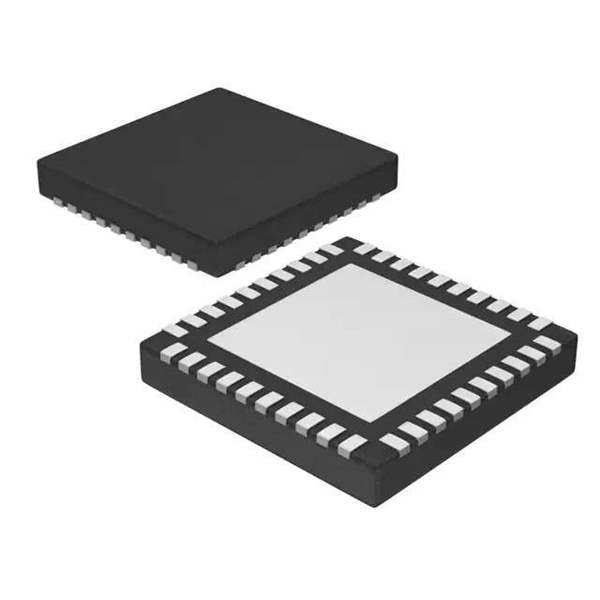

• Package: The device is available in a 40-VQFN (RHA) package, which is suitable for space-constrained applications.

Applications

The MSP430G2755IRHA40R is a versatile MCU that can be used in a variety of applications, including:

• Smart meters and energy monitoring systems
• Portable medical devices
• Home automation and security systems
• Wireless sensors and IoT devices

Support and Resources

Developers can take advantage of Texas Instruments' comprehensive support ecosystem, which includes development kits, reference designs, software libraries, and the TI E2E™ support community. Additionally, extensive documentation, such as datasheets and user guides, is available to help streamline the design process and bring products to market faster.

With its robust feature set and low-power operation, the MSP430G2755IRHA40R is an excellent choice for designers looking to create efficient, reliable, and high-performance applications.
