Overview

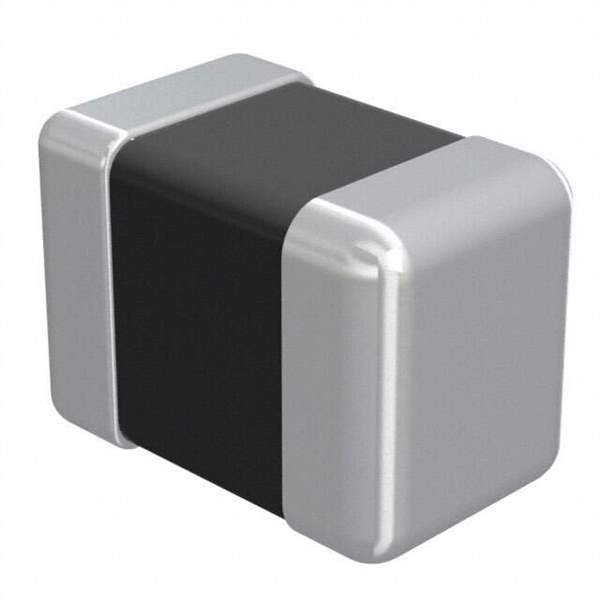

The CKP2012N1R0M-T from Taiyo Yuden is a surface-mount fixed inductor designed for use in compact, high-density electronic circuits. As part of the chip inductor family, it provides a stable inductance value (nominally 1.0 µH as indicated by the “1R0” code) in a small SMD package suitable for automated assembly. These inductors are typically used for signal filtering, impedance matching, and energy storage in low to medium power circuits. The device is optimized for general-purpose use in digital and analog circuits where consistent inductance, low DC resistance, and reliable performance over temperature are required.

Applications

• DC-DC converter input/output filtering in consumer electronics
• RF and IF filtering in wireless communication modules
• Impedance matching networks in low-power RF front ends
• Noise suppression and line filtering in industrial control boards
• Signal conditioning and filtering in measurement and sensor interfaces
• General-purpose inductive components in small embedded and IoT designs

Alternatives & Replacement

Depending on stock availability, cost targets, and design constraints, engineers may need to consider alternative fixed inductors with comparable inductance, current rating, DC resistance, and package size. When selecting a substitute, it is important to match the electrical performance as closely as possible and assess any impact on efficiency, ripple, and EMI behavior.

Recommended alternatives:

• Murata Electronics North America LQW15CN96NJ00D – Redesign Required, package and pin compatibility not guaranteed.
• Murata Electronics North America LQP03HQ7N5H02D – Redesign Required, package and pin compatibility not guaranteed.
• Murata Electronics North America LQP03TN12NH02D – Redesign Required, package and pin compatibility not guaranteed.
• Sunlord MCL1608S4R7MT – Redesign Required, package and pin compatibility not guaranteed.
• Sunlord SDFL1005Q3R3KTF – Redesign Required, package and pin compatibility not guaranteed.
• Additional Sunlord SDCL/SDFL/MCL1608 series inductors listed on this page – Redesign Required.

Always verify compatibility before committing to a replacement: compare footprint and land pattern, inductance value and tolerance, saturation and rated current, DC resistance, self-resonant frequency, and operating temperature range. A different package size or construction may require PCB layout changes and revalidation of EMC and power integrity performance.
