Specifiche prodotto

Categorie Integrated Circuits
Costruttore STMicroelectronics
Imballaggio Reel - TR
Stato Active
Touchscreen 4 Wire Resistive
Risoluzione (bit) 12 b
Riferimento di tensione Internal
Tensione di alimentazione - Esercizio 1.8 V to 3.3 V
Corrente di alimentazione operativa 500nA
Intervallo di temperatura - Esercizio -40°C to 85°C
Montaggio SMD (SMT)

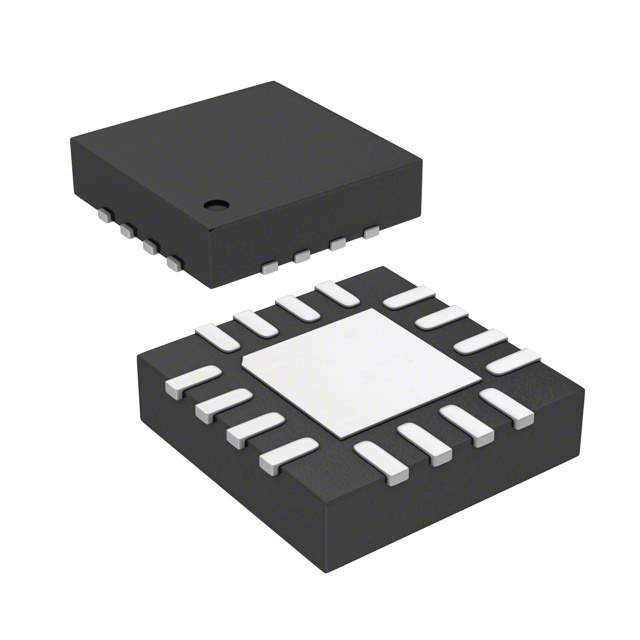

Contenitore/involucro 16-QFN (3x3)
Condizione di conservazione Dry storage cabinet & Humidity protection package
Codice Articolo Win Source 031428-STMPE811QTR
Nome famiglia STMPE811
Data di introduzione July 24, 2007
ECCN EAR99
Paese di origine Thailand
Senza alogeni Compliant
Data EOL stimata 2024
Parte di uso comune? Yes
Popolarità High
Rischio di contraffazione sul mercato aperto 52 pct.
Stato della domanda e dell'offerta Sufficient
Modello 3D Ultra Librarian Ultra Librarian STMPE811QTR Modello CAD

Descrizione

STMPE811QTR Touch Screen Controller Overview

The STMPE811QTR from STMicroelectronics is a versatile and feature-rich touch screen controller designed to enhance interactive interfaces for various applications. This advanced controller integrates touch sensing and data processing capabilities, making it an ideal choice for implementing touch-based user interfaces in embedded systems.

Key Features

  • Capacitive Touch Sensing: The STMPE811QTR supports capacitive touch screen panels, which allows for precise and responsive touch detection. This feature enables the creation of intuitive and user-friendly interfaces.
  • 8-bit GPIO Expander: With its integrated GPIO expander, the controller provides additional I/O options, which can be used for interfacing with other components or for additional control functionalities within the system.
  • Highly Configurable: The device offers a range of configuration options, including sensitivity adjustments and calibration settings, to ensure optimal performance across various touch panel types and sizes.
  • I2C Interface: Communication with the main processor is facilitated through an I2C interface, ensuring easy integration with a wide range of microcontrollers and processors.
  • Low Power Consumption: Designed with power efficiency in mind, the STMPE811QTR is suitable for battery-powered devices, as it helps to extend operational time by minimizing power usage.
  • Advanced Features: The controller includes features such as gesture recognition and multiple touch detection, allowing for more sophisticated user interactions.

Applications

The STMPE811QTR is a versatile component that can be used in a variety of applications where touch screen functionality is required. It is commonly found in:

  • Smart home appliances
  • Personal electronics such as tablets and handheld gaming devices
  • Industrial controls and automation systems
  • Medical devices and healthcare equipment
  • Automotive infotainment systems

With its robust feature set and flexible design, the STMPE811QTR touch screen controller from STMicroelectronics is a top choice for developers looking to create sophisticated and user-friendly touch interfaces in their products.
