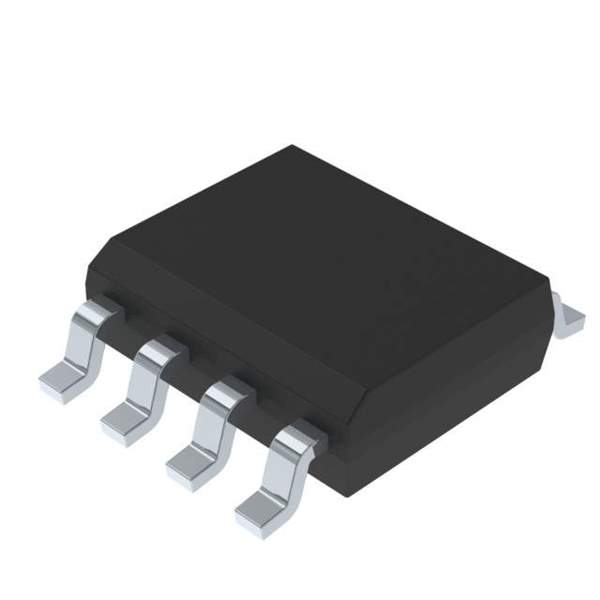

The M95M01-DFMN6TP is a 1 Mbit serial EEPROM memory device from STMicroelectronics, offering a robust storage solution for industrial and consumer applications. Designed with flexibility and reliability in mind, this EEPROM module provides a wealth of features that make it suitable for a wide range of uses where data integrity and endurance are of paramount importance.
Key Features
- Memory Size: 1 Mbit of storage capacity, organized as 128K x 8 bits, which allows for ample storage of configuration settings, user preferences, or small amounts of data logging.
- Interface: The device communicates via a high-speed SPI bus interface, ensuring compatibility with a wide range of microcontrollers and processors.
- Speed: Fast read and write operations, with an SPI clock frequency of up to 10 MHz, making it suitable for applications requiring quick data access.
- Supply Voltage: Operates across a wide range of supply voltages, from 1.8V to 5.5V, which allows for use in systems with varying power supply levels.
- Data Retention: Guarantees data retention for up to 40 years, providing a stable and long-lasting storage solution.
- Write Endurance: Capable of 1 million write cycles per each memory block, ensuring the reliability and longevity of the device.
- Temperature Range: Industrial temperature range from -40°C to +85°C, making it suitable for harsh environments.
- Package: Available in an 8-pin DFN package, which is known for its compact footprint and low profile, making it ideal for space-constrained applications.
Applications
The M95M01-DFMN6TP EEPROM can be used in a variety of applications, such as parameter storage in industrial control systems, setup memory in consumer electronics, real-time clock storage in communication devices, and more. Its robust design ensures that it can meet the demands of high-reliability fields such as automotive and telecommunications.
Conclusion
With its combination of size, speed, and durability, the M95M01-DFMN6TP from STMicroelectronics is an excellent choice for designers looking for a high-quality EEPROM memory solution. Its broad voltage range, high write endurance, and long data retention make it a versatile component for a multitude of memory storage applications.
