LSM6DS3HTR - STMicroelectronics' 3D Accelerometer and 3D Gyroscope Module

The LSM6DS3HTR is a state-of-the-art system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope, tailored for the demands of the modern mobile market. Manufactured by STMicroelectronics, a leader in semiconductor solutions, this compact and versatile sensor module offers high performance and low power consumption, making it an ideal choice for a wide range of applications, including gaming and virtual reality devices, wearable sensors, and smartphone and tablet motion detection.

High Precision and Advanced Features

The LSM6DS3HTR boasts an impressive range of features that enhance its functionality and reliability. With its advanced 3D accelerometer, it can detect accelerations up to ±2g/±4g/±8g/±16g, while the 3D gyroscope supports a full-scale range of ±125dps up to ±2000dps. This enables the device to capture high-resolution motion and orientation data with precision.

Moreover, the sensor integrates an always-on 3D accelerometer and 3D gyroscope to ensure continuous tracking while maintaining low power consumption. This feature is crucial for battery-powered devices where power efficiency is paramount.

Smart Functionality and Easy Integration

The LSM6DS3HTR is designed with smart embedded functions, such as a pedometer, significant motion detection, and tilt detection, which allow for the creation of complex and innovative applications without taxing the main processor. These functions can be configured to operate in both low power and normal modes, offering flexibility in balancing performance and battery life.

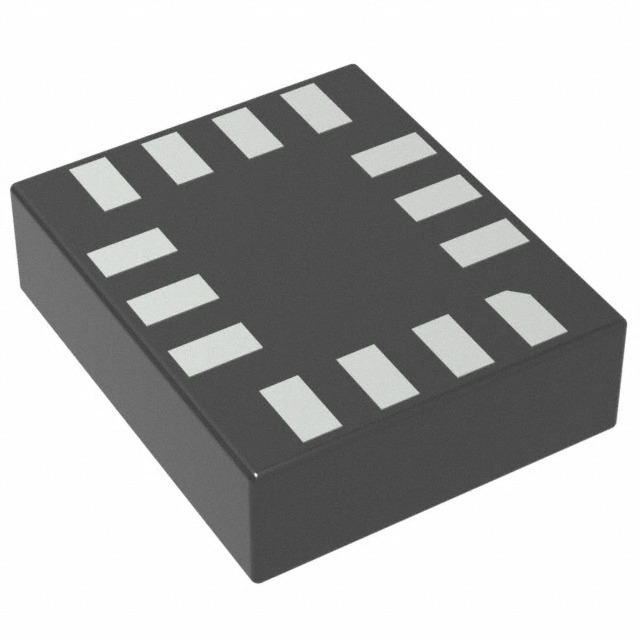

Integration of the LSM6DS3HTR into system designs is facilitated by its compact footprint. The module comes in a plastic land grid array (LGA) package that measures just 2.5x3x0.83 mm, making it suitable for space-constrained applications. It also provides an I2C/SPI digital output interface, ensuring compatibility with most microcontrollers and allowing for straightforward communication with the host system.

Robust and Reliable

Designed to operate over a wide temperature range from -40°C to +85°C, the LSM6DS3HTR maintains its performance in challenging environmental conditions. Its robust design also includes high shock survivability, ensuring that it remains reliable in applications that may be subject to rough handling or vibrations.

With its combination of high-precision sensors, advanced features, and ease of integration, the LSM6DS3HTR from STMicroelectronics represents a premier choice for developers seeking to enhance their products with sophisticated motion and orientation capabilities.
