The BAT46JFILM is a high-efficiency Schottky diode designed and manufactured by STMicroelectronics, a leader in semiconductor solutions. This diode is built for applications requiring fast switching and low power loss, making it an ideal choice for a wide range of electronic circuits.

Key Features

• Low Forward Voltage Drop: The BAT46JFILM boasts a very low forward voltage drop which improves efficiency and minimizes thermal issues in operation.
• High Junction Temperature: With a maximum junction temperature of 150°C, this diode can operate reliably in high-temperature environments.
• Fast Switching Speed: Its fast switching capability ensures that the diode can handle high-frequency operations, which is crucial for modern electronic applications.

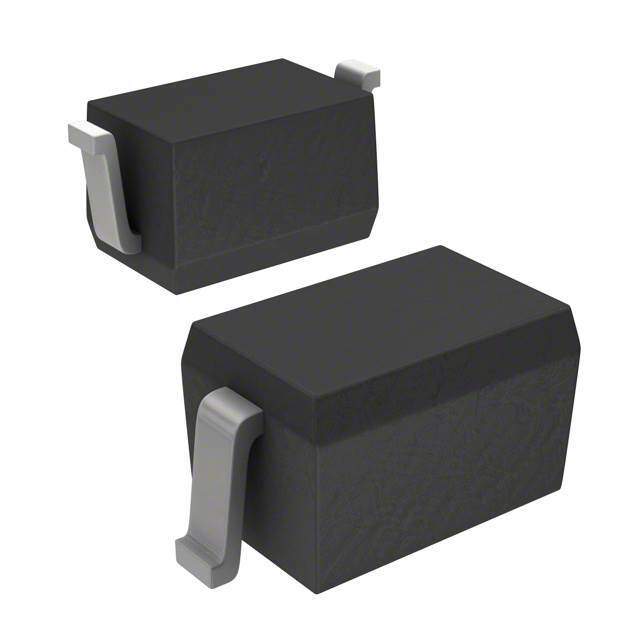

• Surface-Mount Device (SMD): The BAT46JFILM comes in a DO-214AC (SMA) package, which is suitable for automated surface-mounting processes.
• Low Leakage Current: The leakage current is minimal, which is essential for maintaining efficiency and preventing unnecessary power drain.

Applications

The BAT46JFILM is versatile and can be used in various applications, including:

• Power supply circuits
• DC-DC converters
• Reverse polarity protection
• Low voltage rectification
• Charge and discharge circuits for battery management
• High-frequency inverters

Technical Specifications

With its robust design and reliable performance, the BAT46JFILM from STMicroelectronics is a superior choice for designers looking to enhance the efficiency and longevity of their electronic products.
