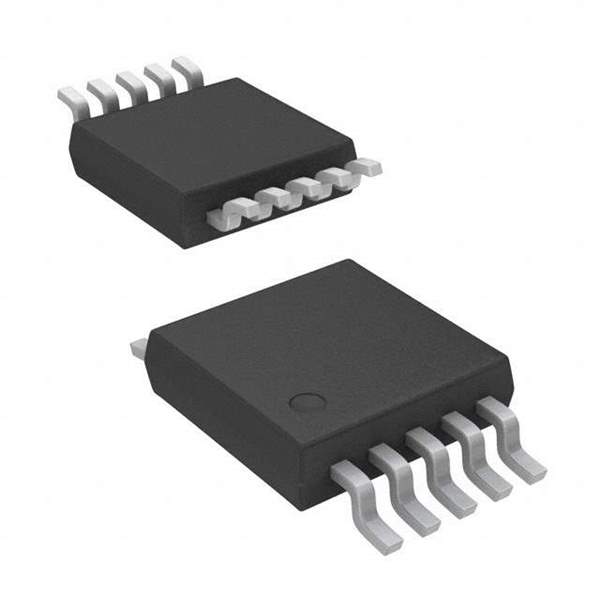

The RClamp0504M is a transient voltage suppressor (TVS) diode array manufactured by Semtech Corporation. It is designed to protect sensitive electronic components from electrostatic discharge (ESD), electrical fast transients (EFT), and surge events. This device is commonly used to safeguard data lines and power supplies in various electronic devices.

Applications:

• USB ports protection.
• HDMI ports protection.
• Ethernet ports protection.
• Power supply protection.
• Data line protection in mobile devices.

Features:

• Low clamping voltage.
• Low capacitance.
• Fast response time.
• Small package size.
• RoHS compliant.

Benefits:

• Effective protection against ESD and surge events.
• Minimal signal degradation due to low capacitance.
• Rapid response to transient events.
• Easy integration into compact designs.
• Environmentally friendly due to RoHS compliance.

The RClamp0504M is designed for reliable and effective protection of electronic circuits. Its low clamping voltage ensures that the voltage seen by the protected components remains within safe limits during transient events. The low capacitance minimizes signal distortion, making it suitable for high-speed data lines. The fast response time allows it to quickly clamp transient voltages, preventing damage to sensitive components. Its small package size makes it easy to integrate into space-constrained applications. It is also designed to be RoHS compliant, meeting environmental regulations.

Technical Specifications: The RClamp0504M is designed to protect against ESD events exceeding the IEC 61000-4-2 standard. Its clamping voltage is typically around 7V. The capacitance is very low typically under 1 pF. The operating temperature range is usually between -40°C and +85°C. Detailed specifications on clamping voltage, capacitance, and leakage current are available in the Semtech Corporation datasheet for this product. It comes in a small outline package (SOP).

The RClamp0504M offers a robust and compact solution for protecting electronic circuits against ESD, EFT, and surge events. Its combination of low clamping voltage, low capacitance, and fast response time makes it a preferred choice for designers in the consumer electronics, industrial, and telecommunications sectors.
