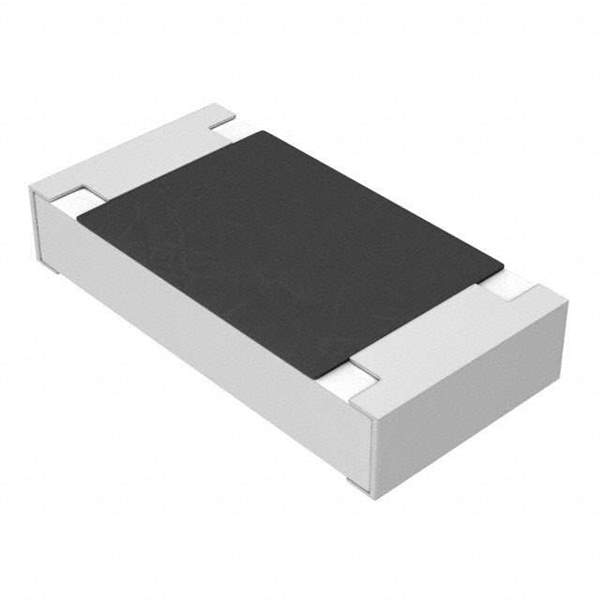

The ERJ-8BWFR075V is a thick film chip resistor from Panasonic’s ERJ series, specifically designed for surface mount applications. This resistor is known for its reliability, stability, and compact size, making it suitable for a wide range of electronic circuits requiring precise resistance values. It is commonly used in applications such as current limiting, voltage division, and signal termination.

Applications:

• Current sensing in power supplies and motor control circuits.
• Voltage dividers in analog circuits and sensor interfaces.
• Pull-up and pull-down resistors in digital logic circuits.
• Termination resistors for impedance matching in signal transmission lines.
• Filtering in noise-sensitive circuits.

Features:

• Thick Film Element: Provides stable and reliable performance under varying environmental conditions.
• Surface Mount Technology (SMT): Facilitates automated assembly and high-density board layouts.
• Compact Size: Saves valuable PCB space, allowing for miniaturization of electronic devices.
• High Power Rating: Offers a relatively high power rating for its size, enabling use in demanding applications.
• RoHS Compliant: Meets the requirements of the Restriction of Hazardous Substances directive.
• Stable Resistance Value: Maintains a consistent resistance value within specified tolerances over temperature and time.

Benefits:

• Improved Circuit Reliability: Enhances the overall reliability of electronic circuits by providing stable resistance.
• Reduced Board Size: Enables the design of smaller and more compact electronic devices.
• Simplified Manufacturing: Streamlines the assembly process with automated SMT placement.
• Cost-Effective Solution: Provides a cost-effective solution for general-purpose resistance requirements.
• Environmentally Responsible: Contributes to environmentally friendly product designs.

Additional Details:

The ERJ-8BWFR075V has a resistance value of 0.075 Ohms. It typically has a power rating of 0.5W. The tolerance is usually around 1%. The temperature coefficient of resistance (TCR) is a key parameter indicating how much the resistance changes with temperature variations. This resistor is designed to operate within a specified temperature range, typically from -55°C to +155°C. The resistor's construction involves a resistive element deposited on a ceramic substrate, with terminations for soldering to the printed circuit board. Proper soldering techniques are essential to ensure reliable electrical and mechanical connections.
