Overview

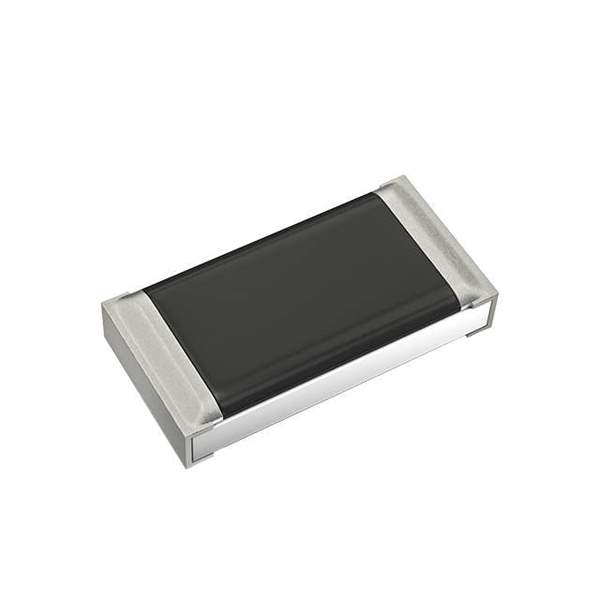

The ERJ-2BSFR10X from Panasonic is a surface-mount thick-film chip resistor designed for general-purpose signal and low-power applications. It belongs to the 0201 (or similar ultra-compact) chip resistor family, making it suitable for high-density PCB layouts where board space is at a premium. As a fixed resistor, it provides a precise resistance value with stable performance over temperature, and is commonly used for pull-up/pull-down networks, current sensing in low-level circuits, and signal conditioning. Typical features for this series include low power rating, a standard commercial-grade temperature range, and compatibility with automated pick-and-place and reflow soldering processes. For exact resistance value, tolerance, power rating, and temperature coefficient, designers should refer to the official Panasonic datasheet for ERJ-2BSFR10X.

Applications

• High-density consumer electronics such as smartphones, tablets, and wearables
• Embedded control boards for home appliances and small domestic equipment
• Signal conditioning and bias networks in communication and RF modules (where applicable)
• Measurement and control circuits in industrial automation and sensor interfaces
• Power management, feedback, and monitoring circuits in DC-DC converters and regulators
• General-purpose resistor networks on multilayer PCBs in computing and networking equipment

Alternatives & Replacement

Depending on supply status, required resistance value, package size, and environmental or reliability constraints, alternative chip resistors may be considered as drop-in or near‑equivalent replacements. When selecting substitutes, match not only the nominal resistance, but also tolerance, power rating, temperature coefficient, voltage rating, and package footprint.

Recommended alternatives:

• Yageo RC0201FR-071M24L – SMD chip resistor, similar series and use-case (redesign may be required)
• Vishay CRCW12064R70FKEAHP – AEC-style chip resistor for robust applications (different size; board changes likely)
• Yageo RC0201FR-0749R9L – Compact SMD resistor for dense layouts (spec and footprint must be checked)
• Yageo RC0402FR-1322KL – 0402 chip resistor, suitable where a slightly larger footprint is acceptable
• Panasonic ERJ-2RKF3012X – Same manufacturer chip resistor family, helpful for platform consistency
• Walsin WR12W1R00FTL – General-purpose SMD resistor for cost-sensitive or high-volume designs

Engineering note: Always verify form, fit, and function before committing to an alternative. Check footprint/package (0201 vs 0402 vs 1206, etc.), pad layout, power and voltage ratings, tolerance, temperature coefficient, and any surge or pulse requirements. A replacement graded as “Redesign Required” typically means PCB layout, derating, and validation testing must be revisited to ensure reliable operation in the target application.
