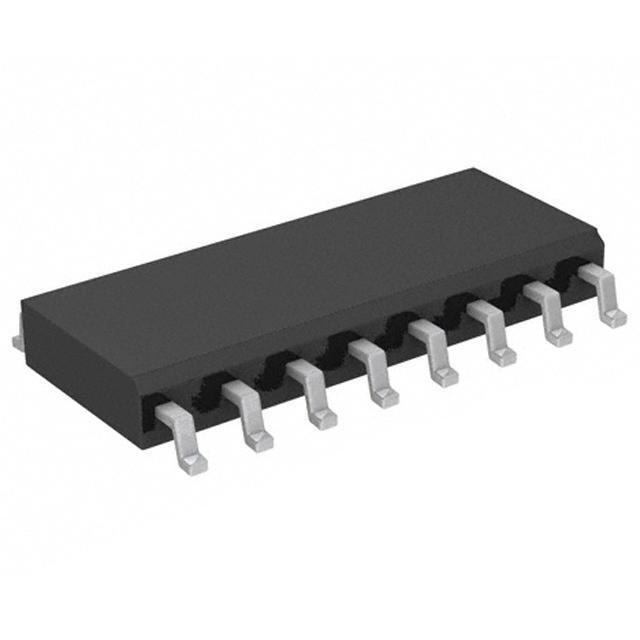

NXP 74HC138D,653 3-to-8 Line Decoder/Demultiplexer

The NXP 74HC138D,653 is a high-speed Si-gate CMOS device that is part of the 74HC series. It is designed to serve as a 3-to-8 line decoder or demultiplexer, with inverting outputs. This integrated circuit (IC) is widely used in digital systems for its ability to decode and distribute signals, making it an essential component in applications such as address decoding for memory units, data routing, and control signal generation.

At the heart of the 74HC138D,653 is its decoding functionality. With three binary input signals (A0, A1, A2), it can decode them into one of eight mutually exclusive outputs (Y0 to Y7). Each output can sink a high current, making the device suitable for driving LEDs or other display elements. The outputs are inverted, meaning that when a particular output is selected, it will be driven low (active low), while the non-selected outputs remain high.

The device also features three enable inputs: two active-low (E1, E2) and one active-high (E3). These enable inputs must be set appropriately for the decoder to function; otherwise, all outputs will remain high regardless of the input signals. This feature allows for easy expansion of the decoder to decode more bits by connecting several 74HC138 devices in cascade.

Manufactured by NXP, a trusted name in the electronics industry, the 74HC138D,653 is packaged in a standard SO-16 surface-mount package. This makes it suitable for automated assembly processes and allows for a compact footprint on printed circuit boards (PCBs).

Key specifications of the NXP 74HC138D,653 include a wide operating voltage range from 2 V to 6 V, which allows it to be used in various logic level environments. It also boasts low power consumption and high noise immunity, typical of CMOS technology. This decoder is characterized for operation from -40°C to +125°C, ensuring reliability across a broad range of temperature conditions.

Whether used in microprocessor systems, computer control systems, or other digital applications, the NXP 74HC138D,653 provides a reliable and efficient solution for decoding and demultiplexing needs.
