Microchip Technology's PIC18F46K22-I/PT Microcontroller

The PIC18F46K22-I/PT is a high-performance microcontroller unit (MCU) from Microchip Technology, designed for a wide range of applications. This MCU is part of Microchip's renowned PIC18F K22 family and is known for its robust design, versatility, and efficiency. It provides an ideal solution for designers looking for a microcontroller with advanced features and a balanced mix of memory and peripheral integration.

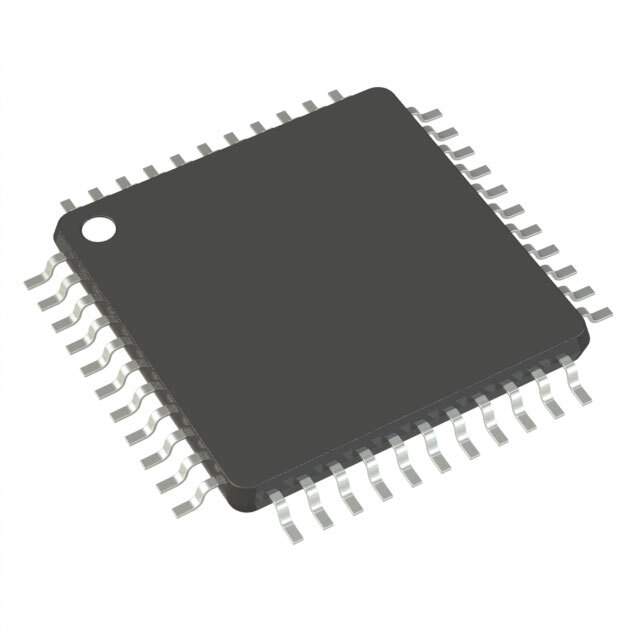

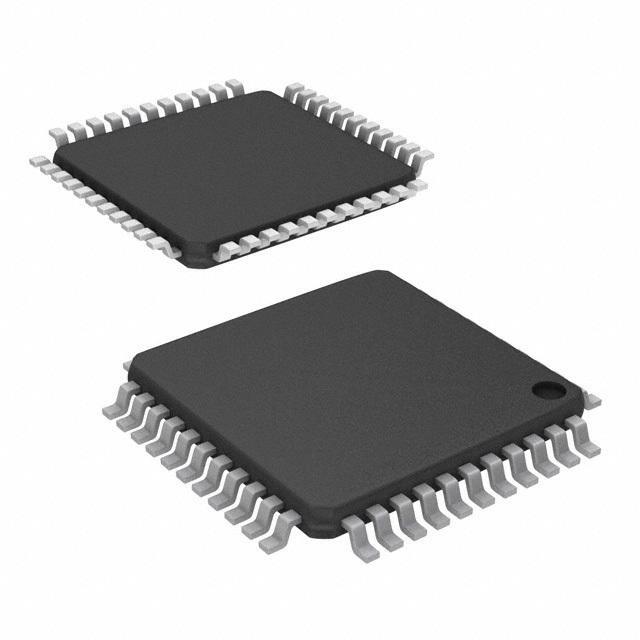

Featuring a 64-pin TQFP (Thin Quad Flat Package), the PIC18F46K22-I/PT is equipped with a 16-bit instruction set and operates at a maximum frequency of 64 MHz. With its 64KB of flash memory and 3,936 bytes of RAM, this microcontroller offers ample space for complex programs and data buffering. Additionally, it includes 1KB of EEPROM, which is useful for non-volatile data storage.

The device boasts an impressive array of integrated peripherals, which include:

• 25-channel 10-bit Analog-to-Digital Converter (ADC)
• Two Comparators
• Two Enhanced Capture/Compare/PWM (ECCP) modules for advanced motor control
• Two Master Synchronous Serial Port (MSSP) modules supporting SPI and I2C communication
• Four Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) modules for serial communication

With its low power consumption, the PIC18F46K22-I/PT is also suitable for battery-operated and power-sensitive applications. The device supports various power-managing features such as Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Brown-out Reset (BOR), and Watchdog Timer (WDT) to ensure reliable operation under different conditions.

Programmers will appreciate the enhanced flash program memory with self-read/write capability, which facilitates in-circuit updates and bootloading. The MCU also features a Charge Time Measurement Unit (CTMU) for touch sensing applications, making it an excellent choice for user interfaces.

For development support, the PIC18F46K22-I/PT is compatible with Microchip's MPLAB® IDE and MPLAB® X IDE development environments, as well as a wide range of third-party tools. This ensures a smooth development process from prototyping to production.

In summary, the PIC18F46K22-I/PT is a powerful and flexible microcontroller that is well-suited for advanced control systems, consumer electronics, industrial automation, and many other embedded system applications.
