The MCP14E5-E/P is a high-performance MOSFET driver from Microchip Technology, designed to accommodate a wide range of power management and control applications. This versatile device is capable of delivering a peak current of up to 1.5A, making it an excellent choice for driving large capacitive loads with rapid switching times.
Key Features:
- High Peak Output Current: Capable of delivering up to 1.5A, which is ideal for driving power MOSFETs and IGBTs.
- Wide Operating Voltage Range: The device operates over a supply range of 4.5V to 18V, accommodating various circuit designs and ensuring compatibility with both 5V and 12V systems.
- Fast Propagation Delays: Features fast rise and fall times, typically 25ns, which allows for efficient switching and reduced power loss in high-speed applications.
- Low Shoot-Through/Cross-Conduction: The MCP14E5-E/P is designed to prevent simultaneous conduction of both the high-side and low-side drivers, minimizing the risk of damaging components.
- Latch-Up Protected: Withstands up to 500mA of reverse current, providing robustness against latch-up events for increased reliability.
- Wide Temperature Range: Operates over an industrial temperature range from -40°C to +125°C, suitable for harsh environments.
Applications:
The MCP14E5-E/P is a highly adaptable driver that can be used in a variety of applications, including:
- DC/DC Converters
- Motor Controllers
- Power Supplies
- Class D Switching Amplifiers
- LED Lighting
- Automotive and Industrial Systems
Package and Availability:

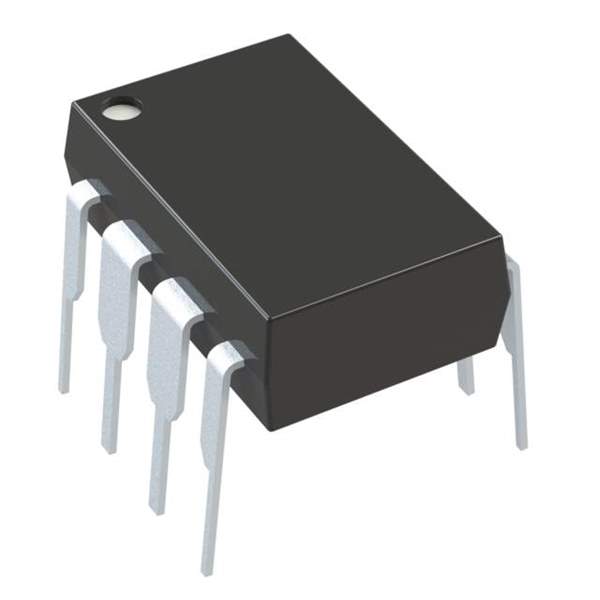

This driver is available in a PDIP-8 package, which is easy to handle and suitable for through-hole mounting, simplifying the integration into various designs. The part number MCP14E5-E/P refers to the PDIP package and the industrial temperature range, ensuring that the device is ready for deployment in a wide array of commercial and industrial products.
Whether you're designing power management systems or looking to drive high-power transistors, the MCP14E5-E/P from Microchip Technology offers the performance and reliability needed to meet the demands of your applications.
