Microchip Technology LAN8720A-CP Ethernet Transceiver
The LAN8720A-CP is a high-performance, small-footprint, low-power 10BASE-T/100BASE-TX Ethernet transceiver designed by Microchip Technology. This compact component addresses the specific needs of embedded applications requiring Ethernet connectivity, making it an ideal choice for a wide range of Internet of Things (IoT) devices, consumer electronics, industrial automation, and much more.
At the heart of the LAN8720A-CP is an energy-efficient Ethernet (EEE) PHY that supports the IEEE 802.3az-2010 standard, which allows for less power consumption during periods of low data activity, potentially reducing the overall power usage of networked devices. This feature is particularly beneficial for battery-powered systems where power conservation is crucial.
The device is equipped with a versatile interface that includes both RMII (Reduced Media Independent Interface) and MII (Media Independent Interface) options, providing flexibility for different microcontroller connections. Furthermore, the LAN8720A-CP supports auto-negotiation, which allows it to automatically select the highest performance mode of operation that is mutually supported by the connected devices.
With its integrated voltage regulator, the LAN8720A-CP can operate with a single 3.3V power supply, simplifying the design and reducing the external components required. Additionally, it features HP Auto-MDIX support, which automatically adjusts for straight-through or crossover cables, eliminating the need for dedicated crossover ports and cables.

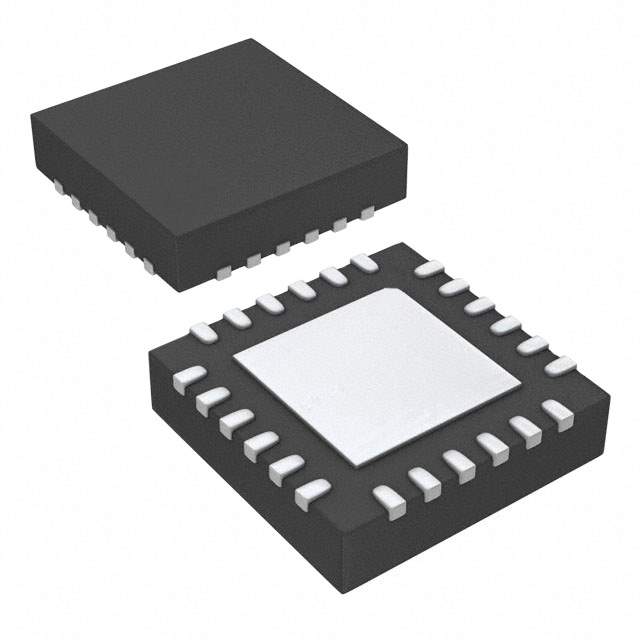

For design engineers and system integrators, the LAN8720A-CP offers an attractive solution due to its robust performance, ease of use, and integration features. It comes in a compact 24-pin QFN package, which is ideal for space-constrained applications. With its comprehensive feature set and proven reliability, the LAN8720A-CP from Microchip Technology is a leading choice for enabling Ethernet connectivity in next-generation electronic products.
Technical support and extensive documentation are available from Microchip Technology, ensuring a smooth integration process and long-term operational stability for products utilizing the LAN8720A-CP Ethernet transceiver.
