MAX31855KASA+T Thermocouple-to-Digital Converter

The MAX31855KASA+T from Maxim Integrated is a sophisticated thermocouple-to-digital converter designed to provide precise temperature measurements while simplifying the design process for engineers. This compact, integrated solution is especially suited for applications requiring high accuracy temperature data from type-K thermocouples.

Key Features

• Direct Digital Conversion: The MAX31855KASA+T directly converts the thermocouple EMF to digital temperature readings, eliminating the need for external signal conditioning.
• High Accuracy: With built-in cold junction compensation, the device offers high accuracy measurements, ensuring reliable performance for critical applications.
• Easy-to-Use Interface: The integrated 14-bit, SPI-compatible serial interface allows for simple connectivity to microcontrollers and other digital systems.
• Wide Temperature Range: Capable of reading temperatures from -200°C to +700°C with a resolution of 0.25°C, making it versatile for diverse applications.
• Thermocouple Fault Detection: The device includes fault detection capabilities, alerting the system to disconnected thermocouples or short circuits, enhancing system safety and reliability.

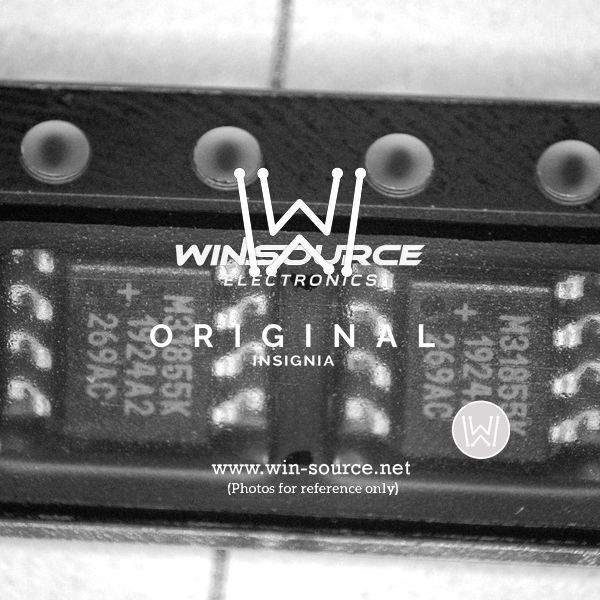

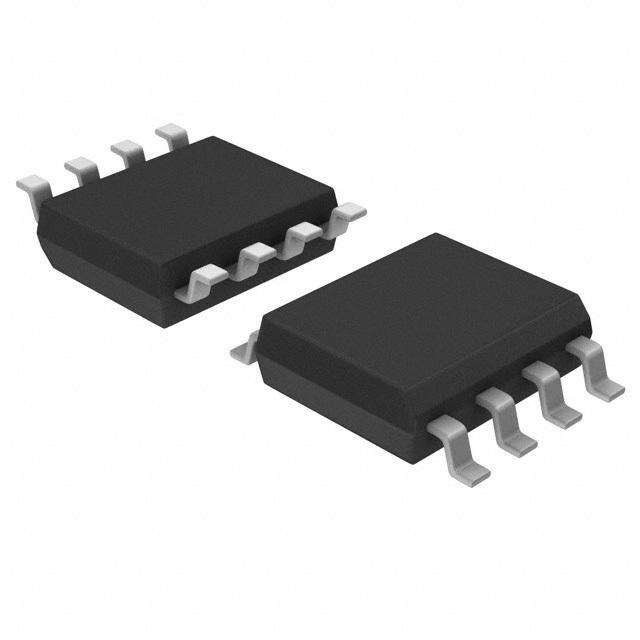

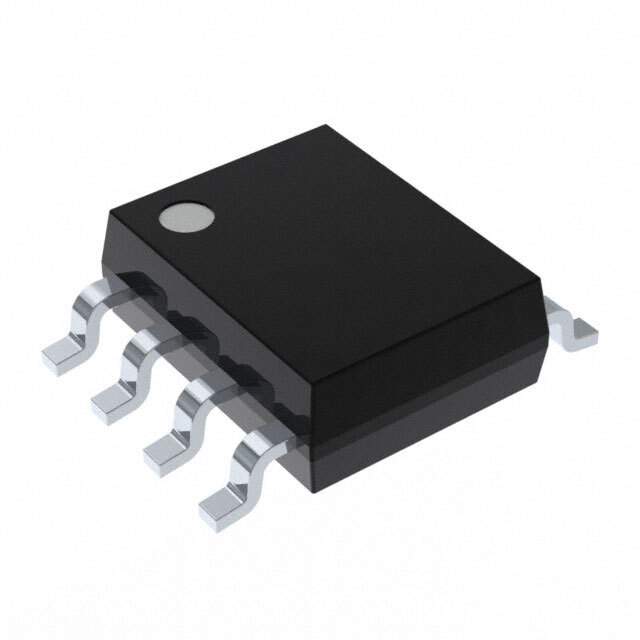

• Compact SOIC Package: Housed in a small 8-pin SOIC package, the MAX31855KASA+T is ideal for space-constrained applications.

Applications

The MAX31855KASA+T is an excellent choice for a wide range of applications that require accurate temperature monitoring. Some of these applications include:

• Industrial temperature control systems
• Consumer appliances
• Medical devices
• Food processing equipment
• HVAC systems

Summary

Maxim Integrated's MAX31855KASA+T is a highly accurate, easy-to-use thermocouple-to-digital converter that simplifies the process of integrating temperature sensing into a variety of systems. Its ability to directly convert thermocouple readings into digital data, combined with its built-in fault detection, makes it a reliable and efficient choice for engineers looking to optimize their temperature sensing solutions.
