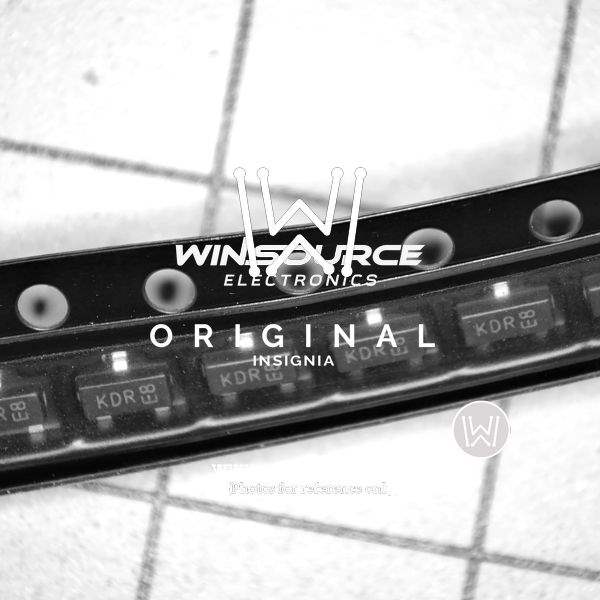

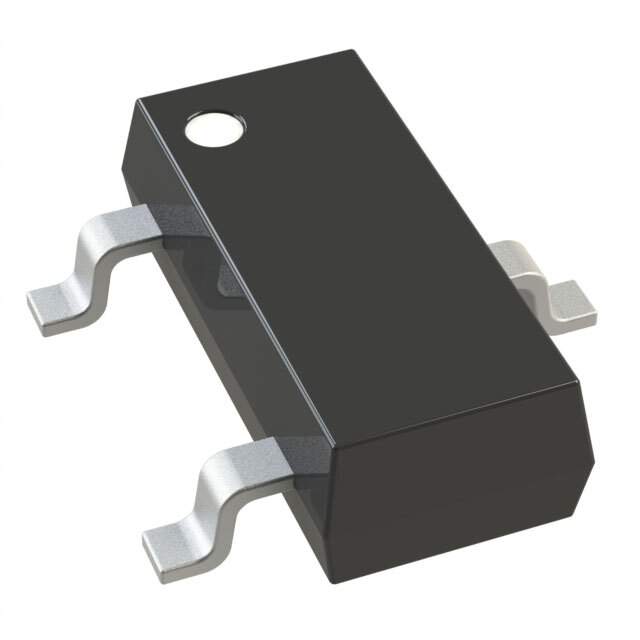

Introducing the SBR160S23-7 Power Rectifier from Diodes Incorporated

The SBR160S23-7 is a cutting-edge power rectifier component designed and manufactured by Diodes Incorporated, a leading global provider and innovator in the semiconductor market. This robust rectifier is engineered to provide superior performance in power conversion applications, making it an ideal choice for a wide range of electronic devices and systems.

Key Features

• Super Barrier Rectifier (SBR) Technology: The SBR160S23-7 incorporates Super Barrier Rectifier technology, which offers lower forward voltage drop and reduced power loss compared to traditional Schottky rectifiers. This results in higher efficiency and improved thermal performance.
• High Surge Capability: With its excellent surge handling capacity, the SBR160S23-7 can withstand transient over-voltage conditions, ensuring reliability and longevity in demanding applications.
• Low Thermal Resistance: The device features a low thermal resistance design, which enhances its ability to dissipate heat effectively, thus maintaining stable operation even under high current loads.
• Power Pack 5 (PP5) Package: Housed in a compact and low-profile Power Pack 5 (PP5) package, the SBR160S23-7 is optimized for space-constrained applications, offering a minimal footprint on the PCB without compromising performance.

Applications

The SBR160S23-7 is versatile and can be used in a variety of applications, including:

• DC/DC converters
• Power supplies
• LED lighting
• Free-wheeling diodes in converters and motor control circuits
• Reverse battery protection

Specifications

The SBR160S23-7 boasts an impressive set of specifications that make it a top choice for power rectification needs:

• Maximum Average Forward Current: 1.6A
• Maximum Peak Repetitive Reverse Voltage: 30V
• Forward Voltage Drop: Low VF
• Operating Junction Temperature Range: -55°C to +150°C
• RoHS Compliant and Halogen-Free

In conclusion, the SBR160S23-7 from Diodes Incorporated represents a significant advancement in power rectifier technology, offering efficiency, reliability, and performance for modern electronic applications. Its combination of SBR technology, high surge capability, and thermal efficiency, all packed into a compact PP5 package, makes it a smart choice for designers and engineers looking to enhance their power management systems.
