Diodes Incorporated BAT760Q-7 Schottky Barrier Diode

The BAT760Q-7 is a high-performance Schottky barrier diode designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This diode is known for its low forward voltage drop and fast switching capabilities, making it an excellent choice for a wide range of electronic applications where efficiency is key.

Featuring a repetitive peak reverse voltage of 60V and a forward continuous current of 3A, the BAT760Q-7 is capable of handling moderate power requirements with ease. The low power loss and high efficiency of this diode are due to its metal-to-silicon Schottky barrier which is optimized for low forward voltage drop. This characteristic is particularly beneficial in applications such as power supply, DC-DC converters, and high-frequency inverters where power conservation is crucial.

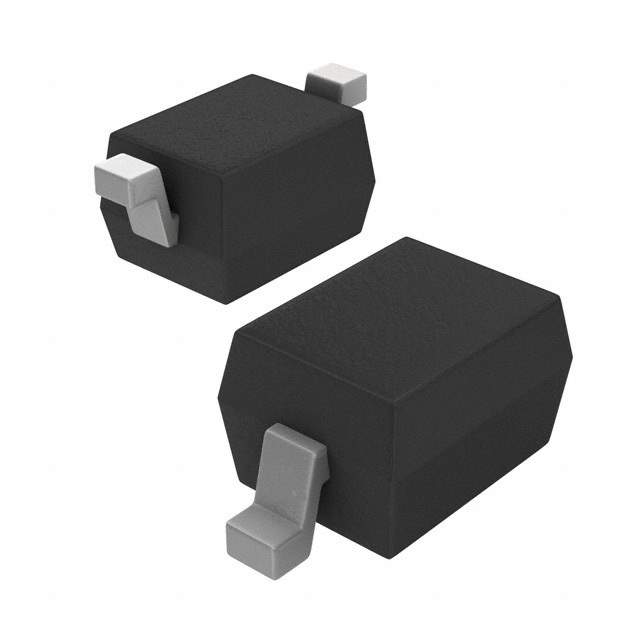

One of the notable features of the BAT760Q-7 is its robust construction. Packaged in a compact SOD-123FL package, it not only saves space on the PCB but also provides excellent power density. The small form factor does not compromise its thermal performance, as the package is designed to dissipate heat effectively, ensuring reliability even under high switching frequencies or high-temperature conditions.

The BAT760Q-7 diode is also characterized by its low leakage current and excellent stability over the entire operating temperature range, which extends from -55°C to 150°C. This makes it suitable for use in harsh environments and ensures consistent performance over a wide range of temperatures.

With its guard ring die construction, the BAT760Q-7 offers enhanced ruggedness and long-term reliability. This feature provides protection against sudden voltage spikes, making the diode resilient in the face of transient over-voltage conditions, thus safeguarding sensitive electronic components downstream.

Overall, the BAT760Q-7 Schottky barrier diode from Diodes Incorporated is a versatile and reliable component that offers a combination of high efficiency, thermal stability, and space-saving design, making it an ideal choice for modern electronic circuits seeking high-performance rectification solutions.
