Product Overview: B360A-13-F from Diodes Incorporated

The B360A-13-F is a high-quality Schottky barrier rectifier designed and manufactured by Diodes Incorporated, a leading global provider of discrete, logic, analog, and mixed-signal semiconductors. This device is engineered to offer efficient and fast switching performance with a low forward voltage drop, making it an ideal choice for a variety of applications where efficiency is key.

Key Features

• High Current Capability: With a maximum average rectified current of 3A, the B360A-13-F is capable of handling high current applications with ease.
• Low Forward Voltage Drop: The device features a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
• High Surge Capability: It is designed to withstand high surge currents, making it robust and reliable for applications subject to surge conditions.
• Operating Junction Temperature Range: The B360A-13-F operates effectively within a junction temperature range of -55°C to +150°C, suitable for a wide range of environmental conditions.
• Lead-Free Finish: This product adheres to environmentally friendly standards with a RoHS-compliant and lead-free finish.

Applications

The B360A-13-F is versatile and can be used in various electronic circuits and applications, including:

• Low voltage, high frequency inverters
• Free-wheeling and polarity protection devices
• Power supply circuits
• DC/DC converters

Package and Quality Assurance

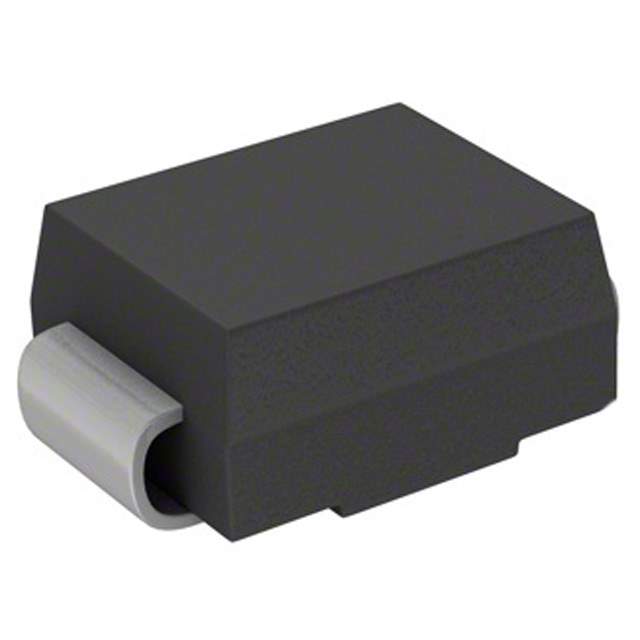

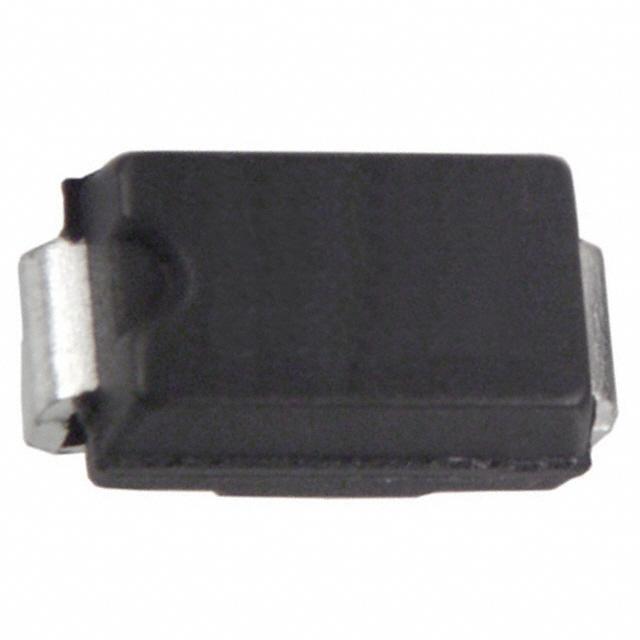

The rectifier is housed in an SMB package, which provides a compact footprint and is suitable for automated assembly processes. The package is designed to offer excellent thermal performance and reliability. Diodes Incorporated ensures that the B360A-13-F meets stringent quality standards, providing confidence in its performance and durability for both commercial and industrial applications.

Conclusion

The B360A-13-F from Diodes Incorporated stands out with its high current capability, low forward voltage drop, and high surge capacity. It is an excellent choice for designers looking for a reliable and efficient Schottky barrier rectifier that can perform in a variety of challenging conditions. With its RoHS-compliant construction, this product is not only high-performing but also environmentally conscious, aligning with modern eco-friendly manufacturing practices.
