Introducing the AP431YG-13 Voltage Reference IC from Diodes Incorporated

The AP431YG-13 is a high-performance adjustable precision shunt regulator designed by Diodes Incorporated. This integrated circuit (IC) is a versatile component that can be used in a wide array of applications, ranging from power supplies to voltage monitoring systems. With its precision voltage reference and low dynamic impedance, the AP431YG-13 is an ideal solution for designers looking to enhance the stability and accuracy of their electronic circuits.

Key Features of the AP431YG-13

• Adjustable Output Voltage: The AP431YG-13 offers an adjustable output voltage from 2.5V to 36V, providing flexibility for various design requirements.
• High Precision: It delivers a high accuracy of 0.5% at 25°C, ensuring reliable performance for critical applications.
• Low Dynamic Impedance: With a dynamic impedance of less than 0.2 ohms, this IC provides stable reverse breakdown voltage.
• Wide Operating Current Range: The AP431YG-13 operates over a current range of 1.0 to 100mA, making it suitable for a broad spectrum of load conditions.
• Extended Temperature Range: It is designed to function over an industrial temperature range of -40°C to +85°C, ensuring reliability under varying environmental conditions.

Applications

The versatility of the AP431YG-13 allows it to be used in numerous applications, including:

• Adjustable power supplies
• Battery chargers
• Switching power supplies
• Voltage monitoring
• Motor control
• Precision data systems

Package and Quality Assurance

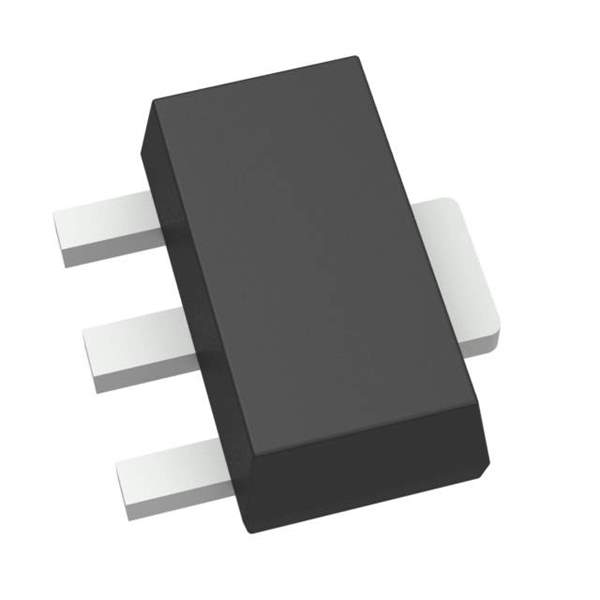

The AP431YG-13 comes in a compact SOT-89 package, which is ideal for space-constrained applications. It is also RoHS compliant, ensuring adherence to the latest environmental standards and regulations. Diodes Incorporated is committed to providing high-quality products, and the AP431YG-13 is no exception, with rigorous testing and quality control procedures in place to ensure its performance and reliability.

For electronic designers and engineers looking for a reliable voltage reference solution, the AP431YG-13 from Diodes Incorporated offers the perfect blend of flexibility, precision, and durability. Whether it's for power regulation or signal conditioning, this IC stands as a robust component in any electronic system.
