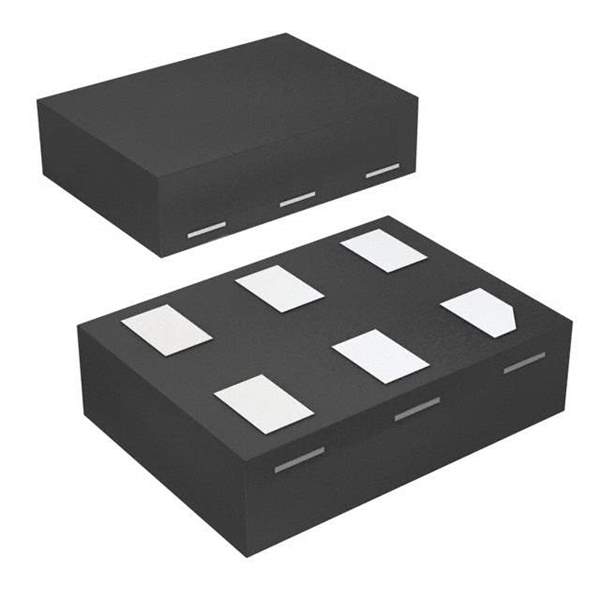

Product Overview: 74LVC1G3157FZ4-7

The 74LVC1G3157FZ4-7 is a high-performance, single-pole, double-throw analog switch designed by Diodes Incorporated. This compact and efficient switch is part of the 74LVC family, which is known for its low-voltage operation and low-power consumption. The device is ideal for a wide range of applications, including signal routing, data acquisition systems, and communications equipment.

Key Features

• Low-Voltage Operation: The 74LVC1G3157FZ4-7 operates at a supply voltage range of 1.65V to 5.5V, making it compatible with various logic levels and suitable for battery-operated devices.
• High-Speed Switching: With its quick switching characteristics, this analog switch ensures minimal propagation delay and is suitable for high-frequency signal switching.
• Low Power Consumption: The device boasts an ultra-low quiescent current, significantly reducing power consumption and extending battery life in portable applications.
• Wide Operating Temperature Range: It can reliably function in a broad temperature range from -40°C to +85°C, accommodating various environmental conditions.
• Logic-Level Translation: The switch can be used for logic-level translation, allowing it to interface between different voltage domains seamlessly.

Package and Quality

The 74LVC1G3157FZ4-7 is offered in a space-saving DFN2510-6 (SOT886) package, which is optimized for minimal footprint and enhanced thermal performance. It is also available in standard leaded and lead-free versions to cater to environmental and regulatory requirements.

Applications

Thanks to its versatile features, the 74LVC1G3157FZ4-7 is suitable for a variety of applications, including:

• Audio and Video Signal Switching
• Sample and Hold Circuits
• Analog and Digital Multiplexing
• Communication Systems
• Portable Devices

Overall, the 74LVC1G3157FZ4-7 from Diodes Incorporated is a reliable and flexible solution for designers looking to incorporate a high-performance analog switch into their electronic systems. Its low-power operation, wide voltage range, and compact packaging make it an excellent choice for both advanced and space-constrained applications.
