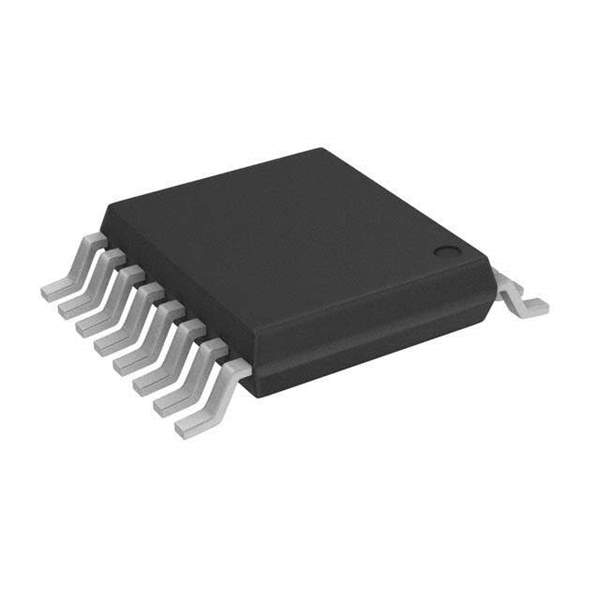

Product Overview: 74HC594T16-13 from Diodes Incorporated

The 74HC594T16-13 is a high-speed Si-gate CMOS device from Diodes Incorporated, a leading manufacturer in the semiconductor industry. This product is a part of the 74HC series, which is well-known for its robust performance and compatibility with TTL (Transistor-Transistor Logic). The 74HC594T16-13 is an 8-bit shift register with output latches and a storage register that provides the functionality for serial-to-parallel data conversion.

Key Features

• Shift Register: The device includes an 8-bit serial-in, parallel-out shift register that allows the efficient conversion of serial data to parallel form. This feature is particularly useful in applications requiring data manipulation and storage.
• Storage Register: Accompanying the shift register is an 8-bit storage register that holds the parallel output data, providing additional flexibility in data handling.
• High-Speed Operation: As part of the 74HC family, the 74HC594T16-13 boasts high-speed operation, which is essential for high-performance computing and digital systems.
• Output Latching Capability: The output latch feature ensures that data is retained at the output pins until it is updated on the next clock cycle, providing stable and reliable data outputs.
• Wide Operating Voltage Range: The device operates over a wide voltage range, typically from 2V to 6V, making it suitable for various electronic applications and compatible with many microcontrollers and digital systems.

Applications

The 74HC594T16-13 is versatile and can be used in a wide array of applications. Some of the common applications include:

• Serial-to-parallel data conversion in digital communication systems
• Interface circuits between microprocessors/microcontrollers and parallel input devices
• LED and display drivers where serial-to-parallel conversion is required
• Data acquisition systems and instrumentation

Diodes Incorporated's 74HC594T16-13 is a reliable and efficient solution for designers looking to implement serial-to-parallel data conversion in their systems. With its high-speed operation and robust feature set, this shift register is an excellent choice for ensuring smooth data processing in a multitude of electronic applications.
