Product Overview: ADV7280KCPZ by Analog Devices Inc.

The ADV7280KCPZ is a high-performance, 10-bit resolution video decoder manufactured by Analog Devices Inc., a leader in the semiconductor industry. Designed to convert analog composite video signals to a digital YCrCb 4:2:2 video data stream, this integrated circuit is ideal for a wide range of applications in video processing and broadcasting technology.

This versatile decoder is capable of accepting a wide range of standard-definition video formats, including NTSC, PAL, and SECAM. It features an adaptive 2D comb filter, which significantly reduces artifacts such as dot crawl, thereby ensuring a cleaner and crisper image output. The ADV7280KCPZ is a robust solution for video systems that require high-quality video decoding with low power consumption.

Key Features:

• Multi-Standard Support: Compatible with NTSC, PAL, and SECAM video standards.
• High-Quality Decoding: Incorporates a 2D comb filter for artifact reduction and improved image sharpness.
• Low Power Operation: Optimized for power-sensitive applications, contributing to overall system power efficiency.
• Flexible Output Formats: Supports 4:2:2 YCrCb digital video output format, making it suitable for interfacing with a variety of digital video processors.
• Automatic Gain Control (AGC): Ensures consistent video signal levels for inputs with varying signal strengths.
• Macrovision Copy Protection: Capable of detecting Macrovision copy-protected video sources.

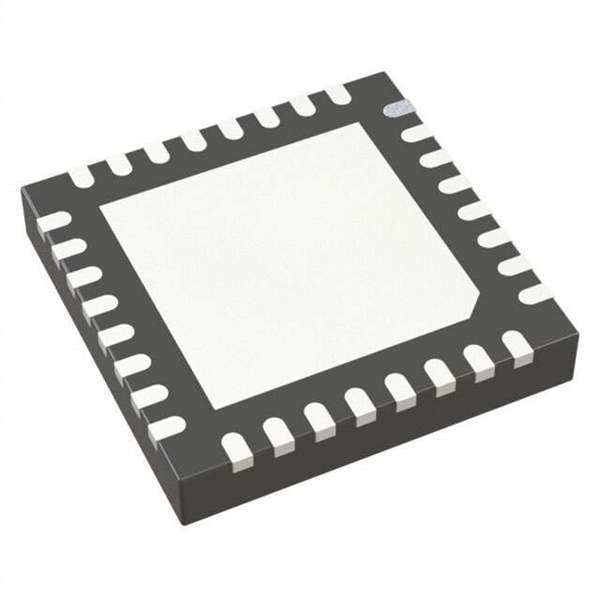

The ADV7280KCPZ is housed in a compact 32-lead LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications. Its small footprint, combined with its advanced video processing capabilities, makes it an excellent choice for portable and automotive video applications, security and surveillance systems, and video capture devices.

Analog Devices Inc. provides comprehensive technical support and documentation for the ADV7280KCPZ, including detailed datasheets, application notes, and reference designs, to facilitate easy integration into your video systems. With its superior performance and versatility, the ADV7280KCPZ stands out as a top-tier solution for analog-to-digital video conversion needs.
