The ADG5209FBRUZ is a highly integrated, high-performance analog multiplexer from Analog Devices Inc., designed to cater to a wide range of applications that require precision signal routing. This device is part of the robust ADG5209 series, known for its reliability and versatility in complex electronic systems.

Key Features:

• Channel Configuration: The ADG5209FBRUZ offers a 4:1 differential configuration or an 8:1 single-ended channel selection, providing flexibility for various signal routing requirements.
• Low On-Resistance: This multiplexer boasts a low on-resistance (typically 4.5 Ω), ensuring minimal signal attenuation and distortion for precise signal handling.
• High Off Isolation: The device features high off isolation, reducing the likelihood of crosstalk between channels and preserving signal integrity.
• Single Supply Operation: It operates from a single 9 V to 40 V supply or a dual ±4.5 V to ±20 V supply, accommodating a range of power environments.
• Latch-Up Proof: The ADG5209FBRUZ is designed with latch-up proof construction, which enhances its robustness against overvoltage conditions and ensures stable operation.
• Extended Temperature Range: With an operating temperature range of -40°C to +125°C, this multiplexer is suitable for use in harsh environments.

Applications:

The ADG5209FBRUZ is ideal for use in a variety of applications, including but not limited to:

• Automatic Test Equipment (ATE)
• Data Acquisition Systems
• Process Control
• Instrumentation
• Avionics

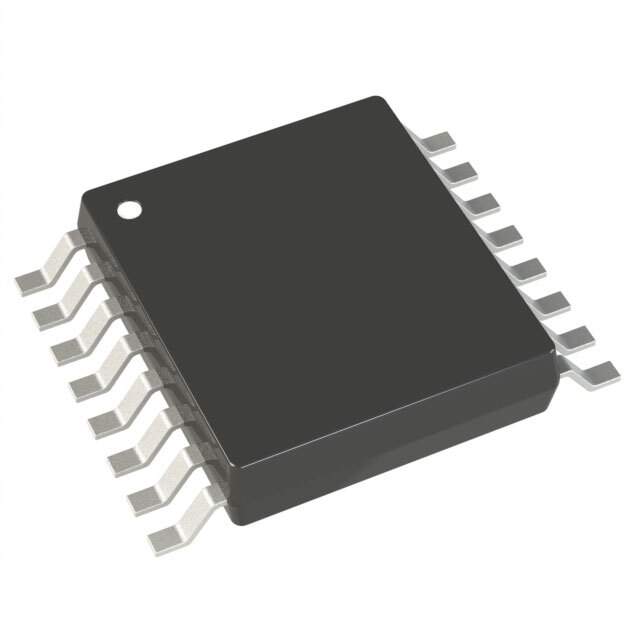

This device is available in a TSSOP package, identified by the part number ADG5209FBRUZ, ensuring a compact footprint for space-constrained applications. With its combination of performance, reliability, and versatility, the ADG5209FBRUZ is an excellent choice for designers looking to optimize their signal routing capabilities in both industrial and aerospace applications.
