Product Overview: AD8221ARMZ-R7

The AD8221ARMZ-R7 is a high-performance instrumentation amplifier manufactured by Analog Devices Inc., a leader in precision analog technology. This device is designed to offer a perfect blend of flexibility, reliability, and accuracy for a wide range of applications, including medical instrumentation, industrial process controls, and precision data acquisition systems.

The AD8221ARMZ-R7 operates within a wide power supply range of ±2.3 V to ±18 V, making it versatile for both single and dual supply configurations. Its gain is set by a single external resistor (Rg), which allows for user-selectable gains ranging from 1 to 1000. This feature provides the flexibility to adapt to various signal amplitudes, ensuring precise amplification across different applications.

With its excellent performance characteristics, the AD8221ARMZ-R7 boasts a high common-mode rejection ratio (CMRR) of 80 dB to 115 dB over the full temperature range, depending on the gain. This high CMRR is critical in noisy environments or when dealing with common-mode signals, as it helps to maintain signal fidelity by reducing the influence of unwanted signals.

The device also features low input bias currents, low offset voltage, and low offset drift, which contribute to its high accuracy and stability over time and temperature variations. These attributes make it ideal for applications requiring precise and stable measurements, such as strain gauge amplifiers, thermocouple amplifiers, and other sensor signal conditioning circuits.

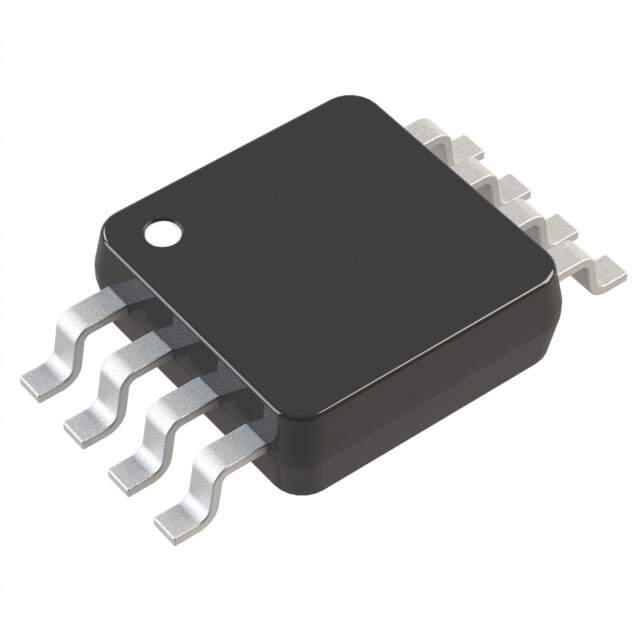

The AD8221ARMZ-R7 comes in a compact MSOP-8 package with the R7 suffix indicating the 7-inch reel packaging option, which is suitable for automated assembly processes, facilitating mass production and ensuring consistency in manufacturing.

In summary, the AD8221ARMZ-R7 from Analog Devices Inc. is a robust, high-precision instrumentation amplifier that provides design engineers with a reliable solution for a multitude of electronic signal amplification needs. Its combination of versatility, performance, and ease of use makes it a valuable component in any precision analog signal processing application.
