Product Overview: Texas Instruments TXB0108PWR

The Texas Instruments TXB0108PWR is a cutting-edge, 8-bit bidirectional voltage-level translator designed for interconnection systems that require voltage translation without direction pin control. This device uses two separate configurable power-supply rails, with the A port tracks ranging from 1.2V to 3.6V and the B port tracks ranging from 1.65V to 5.5V. This flexibility allows the TXB0108PWR to interface between lower voltage and higher voltage components without the need for a direction control signal.

One of the key features of the TXB0108PWR is its auto-direction sensing, which simplifies the design process by eliminating the need for direction control. This makes it an ideal solution for applications where the data flow direction changes dynamically. Furthermore, the device employs edge-rate accelerators to enhance the data transfer rate by increasing the edge rates of the output drivers. This feature is particularly useful in applications that require high-speed data transfer.

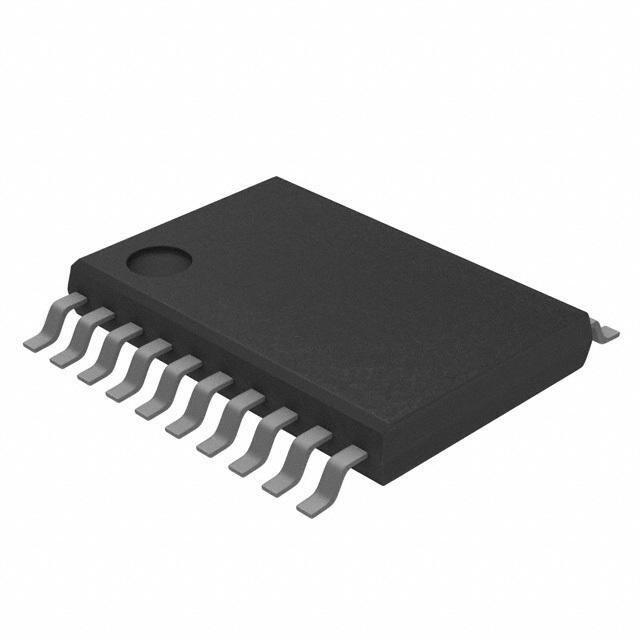

With a wide operating temperature range of -40°C to 85°C, the TXB0108PWR is suitable for various industrial and commercial applications. It is also designed to be compatible with push-pull or open-drain drive circuits, adding to its versatility. The device's 8-bit noninverting translator is housed in a TSSOP package, ensuring a compact footprint on the PCB.

For protection, the TXB0108PWR incorporates a low-power standby operation initiated by OE (Output Enable) and is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging backflow current through the device when it is powered down. Additionally, the device is equipped with ESD protection cells that exceed JESD 22, ensuring robustness and longevity in harsh environments.

Overall, the Texas Instruments TXB0108PWR is a highly reliable and efficient solution for voltage-level translation in multi-voltage systems, offering ease of use, high-speed performance, and protection features that make it an essential component for modern electronic designs.
