The TPS54202DDCR is a highly efficient, small-sized, synchronous step-down (buck) converter designed by Texas Instruments, a leader in semiconductor solutions. This component is part of TI's extensive portfolio of voltage regulators, specifically catering to applications that demand low power consumption and space efficiency.

Key Features

• Input Voltage Range: The TPS54202DDCR operates over a wide input voltage range from 4.5V to 28V, making it versatile for various power supply applications.
• Output Current: It is capable of delivering up to 2A of continuous output current to the load.
• High Efficiency: With synchronous switching, the device offers increased efficiency, which is crucial for battery-powered and energy-sensitive applications.
• Adjustable Switching Frequency: The switching frequency is adjustable from 200 kHz to 2.2 MHz, allowing designers to optimize between efficiency and component size.
• Thermal and Overcurrent Protection: The device includes thermal shutdown and overcurrent protection features to ensure reliable operation under abnormal conditions.

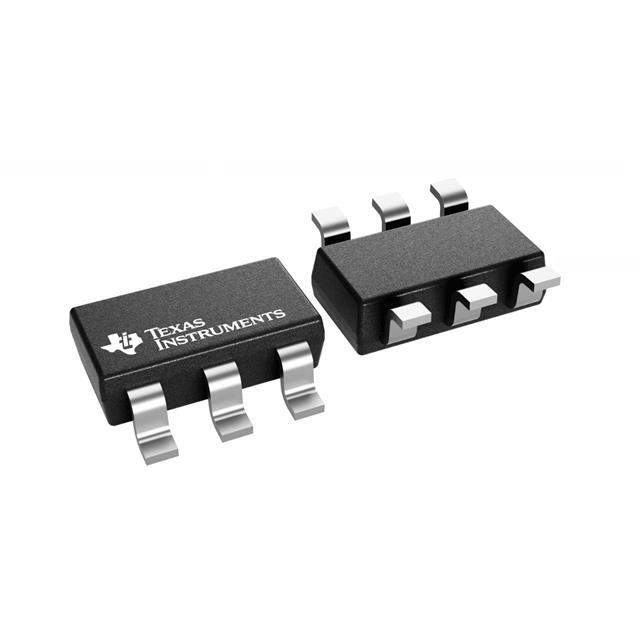

• Small Package: The TPS54202DDCR comes in a small 6-pin SOT (DDC) package, which is ideal for space-constrained applications.

Applications

The TPS54202DDCR is suitable for a broad range of applications, including:

• Consumer Electronics
• Industrial and Automation Systems
• Point of Load Power Supplies
• Telecommunications Equipment

Design Support

Texas Instruments provides extensive design support for the TPS54202DDCR, including application notes, reference designs, and simulation tools. This support helps designers to rapidly integrate the device into their applications and reduce time-to-market.

Quality and Reliability

As with all Texas Instruments products, the TPS54202DDCR is manufactured to high standards of quality and reliability. It is suitable for commercial, industrial, and even automotive grade applications, adhering to the stringent requirements of each sector.

For detailed technical specifications, application notes, and support resources, visit the Texas Instruments product page for the TPS54202DDCR.
