The TLC272IDG4 from Texas Instruments is a high-precision dual operational amplifier that offers a blend of features making it ideal for a wide range of applications. This device is part of the LinCMOS™ operational amplifiers which utilize advanced silicon-gate CMOS technology to achieve the perfect harmony between high-frequency performance and low power consumption.

Key Features

• Low Power Consumption: The TLC272IDG4 is designed for low power consumption, ensuring efficiency in battery-powered devices and reducing the overall power requirements in electronic systems.
• Wide Supply Range: It operates from a single supply range of 4 V to 16 V or from dual supplies of ±2 V to ±8 V, making it versatile for various circuit configurations.
• High Input Impedance: The operational amplifier features a high input impedance of 1012 Ω, which minimizes loading on input sources and preserves signal integrity.
• Output Drive Capability: The device can drive 10 kΩ loads in parallel with 10 pF capacitive loads, which is suitable for driving capacitive loads without oscillation.
• Low Offset Voltage: It has a typical input offset voltage of 0.9 mV, ensuring high accuracy in signal amplification and processing.

Applications

The TLC272IDG4 is a versatile component that can be used in a variety of electronic circuits and systems. Its applications include:

• Transducer Amplifiers
• DC Gain Blocks
• Analog Processing
• Active Filters
• General-purpose Signal Amplification

Quality and Reliability

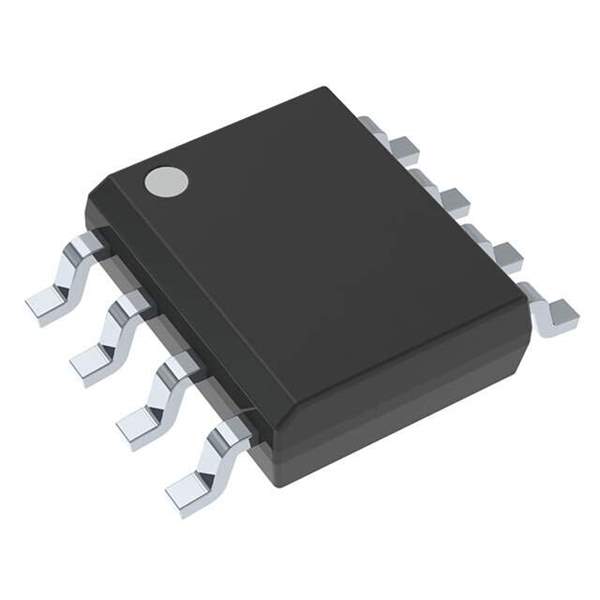

Texas Instruments is renowned for its commitment to quality and reliability, and the TLC272IDG4 is no exception. The device is offered in an 8-pin SOIC package and is characterized for operation from –40°C to 85°C, making it a reliable choice for industrial applications. With its combination of features, the TLC272IDG4 is an excellent choice for designers looking for a high-quality operational amplifier that can meet the demands of their complex electronic systems.
