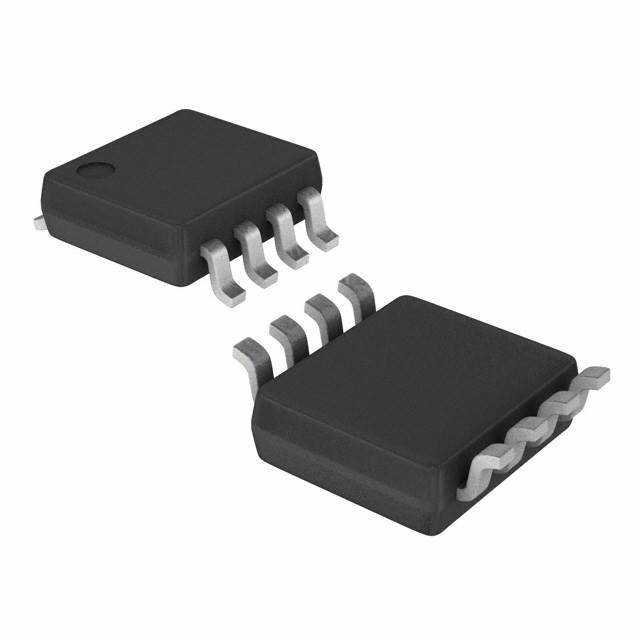

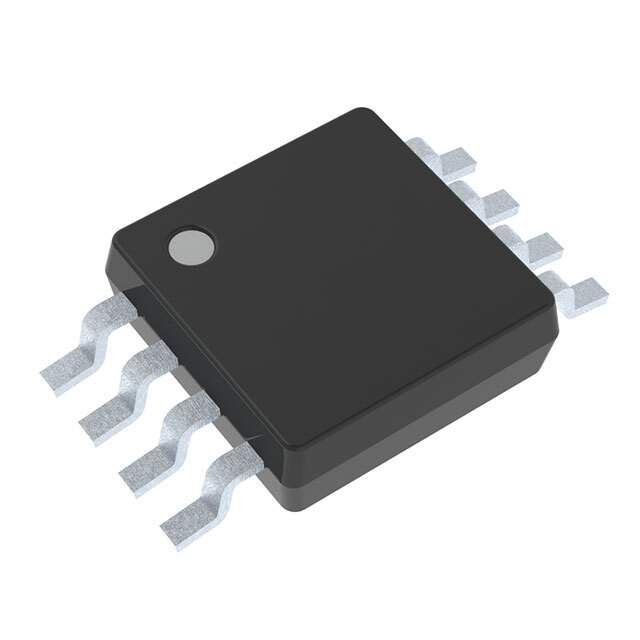

Overview of Texas Instruments TCA9406DCUR

The TCA9406DCUR is a robust level shifter solution designed by Texas Instruments to facilitate communication between devices operating at different voltage levels. This integrated circuit (IC) is particularly useful in applications where the interfacing of low-voltage microprocessors or microcontrollers with higher voltage components is necessary. It serves as a bidirectional translator for I²C and SMBus signals, making it an essential component for modern digital electronics systems.

Key Features

• Voltage Level Shifting: The TCA9406DCUR can shift between two different voltage levels ranging from 1.65V to 3.6V on the A-side to 2.3V to 5.5V on the B-side, which makes it versatile for multi-voltage systems.
• Compatibility: It is designed to be compatible with I²C and SMBus standards, ensuring seamless integration with a wide range of devices that use these communication protocols.
• Performance: The device supports fast-mode I²C data rates up to 1 Mbps and provides excellent signal integrity, thus maintaining the integrity of data transmission across voltage levels.
• Protection: Equipped with 8 kV of ESD (Electrostatic Discharge) protection on all pins, the TCA9406DCUR ensures durability and long-term performance in harsh electrical environments.
• Low Power Consumption: With its low quiescent current, this level shifter is an energy-efficient choice for battery-operated and power-sensitive applications.

Applications

The TCA9406DCUR is suitable for a wide range of applications, including but not limited to:

• Interfacing between microcontrollers and peripherals with different voltage levels.
• Level translation for I²C/SMBus devices such as sensors, EEPROMs, ADCs, and DACs.
• Consumer electronics where multiple voltage domains exist, such as smartphones, tablets, and personal computers.
• Industrial and automotive systems that require robust level shifting capabilities.

Package and Availability

The Texas Instruments TCA9406DCUR is offered in an ultra-small, leadless X2SON package, which minimizes the footprint on printed circuit boards and is well-suited for space-constrained applications. The device is available for order, and detailed datasheets, technical documentation, and support resources can be found on the Texas Instruments website.
