Product Overview: SN74LVC1G57DRLR

The SN74LVC1G57DRLR is a versatile and high-performance configurable multiple-function gate from Texas Instruments. This single-gate product is part of the SN74LVC family, which is known for its low-voltage operation and compatibility with mixed-voltage system environments. The device is designed to operate on a 1.65V to 5.5V Vcc supply, making it suitable for interfacing with both 3.3V and 5V logic levels.

The SN74LVC1G57 'Little Logic' device is a single configurable gate that can perform a multitude of logic functions. The output state of the gate is determined by the input signals on the configuration pins. This multifunction gate can be utilized as a universal logic gate to implement a variety of logic functions such as AND, OR, NAND, NOR, XOR, XNOR, inverter, and buffer. This flexibility makes it a handy component for a wide range of applications, including signal gating, down-level shifting, up-translating, and logic-level translation.

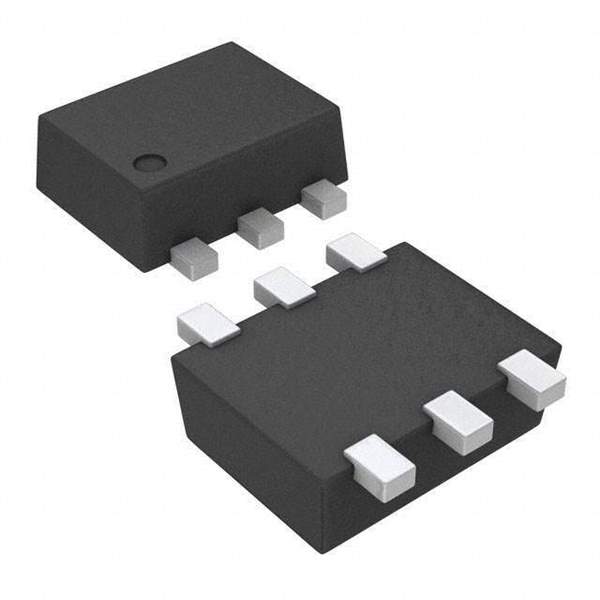

The SN74LVC1G57DRLR comes in a compact SOT-5X3 package, specifically in a 6-pin SOT-563 package, which is ideal for space-constrained applications. The device also features Schmitt-trigger action at all inputs, which makes it tolerant to slower input rise and fall times. This characteristic enhances its performance in environments with noisy signals, providing a more stable and reliable operation.

Texas Instruments ensures that the SN74LVC1G57DRLR maintains a low power consumption while delivering high drive strength. The device supports a wide operating temperature range, typically from -40°C to +125°C, which ensures functionality across various environmental conditions.

The SN74LVC1G57DRLR is a testament to Texas Instruments' commitment to providing innovative and adaptable logic solutions. Its ability to be configured for multiple logic functions in a single package makes it an efficient choice for designers looking to reduce board space and streamline their circuit designs.

Key Features:

• Configurable multiple-function gate
• Wide supply voltage range (1.65V to 5.5V)
• Compatibility with mixed-voltage environments
• Low power consumption
• High drive strength
• Operating temperature range: -40°C to +125°C
• Compact 6-pin SOT-563 package
• Schmitt-trigger action at all inputs
