The SN74LV4066ARGYRG4 is a high-performance, quad bilateral switch integrated circuit, expertly crafted by Texas Instruments (TI) to provide precise analog and digital switching capabilities. This versatile component is designed for use in a broad range of applications, from signal routing to data acquisition systems, where a low-on resistance and minimal propagation delay are essential.

Constructed with advanced silicon-gate CMOS technology, the SN74LV4066ARGYRG4 offers significant advantages in terms of power consumption and operational efficiency. The device operates over a wide voltage range, from 2V to 5.5V, making it suitable for interfacing with both TTL and CMOS logic levels, and ensuring compatibility with a diverse array of microcontrollers and digital systems.

Each switch of the SN74LV4066ARGYRG4 is independently controlled by an input enable (EN) signal, which allows for precise control of signal flow. The low charge injection feature minimizes distortion in audio and video signal applications, while the low power consumption characteristic of the device ensures that it is suitable for battery-operated and power-sensitive designs.

Key features of the SN74LV4066ARGYRG4 include:

• Wide operating voltage range: 2V to 5.5V
• Low on-state resistance: typically 5 Ω at 5V V_CC
• High degree of linearity and low on-state resistance variation with input signal
• Minimal propagation delay: typically 0.5 ns at 5V V_CC
• Low crosstalk between switches
• ESD protection exceeds JESD 22

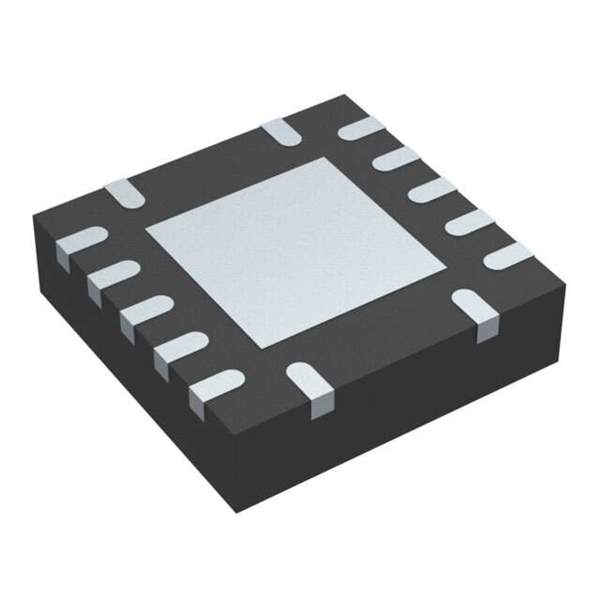

The device is housed in a compact VQFN (RGY) package, ensuring a minimal footprint on printed circuit boards (PCBs) and facilitating integration into space-constrained applications. The SN74LV4066ARGYRG4 is RoHS compliant and characterized for operation from -40°C to 125°C, providing reliable performance across a wide temperature range.

In summary, the SN74LV4066ARGYRG4 from Texas Instruments is an exceptional choice for designers who require a high-quality, reliable switch that can handle both analog and digital signals with ease. Its integration into any system promises to enhance performance while maintaining power and space efficiency.
