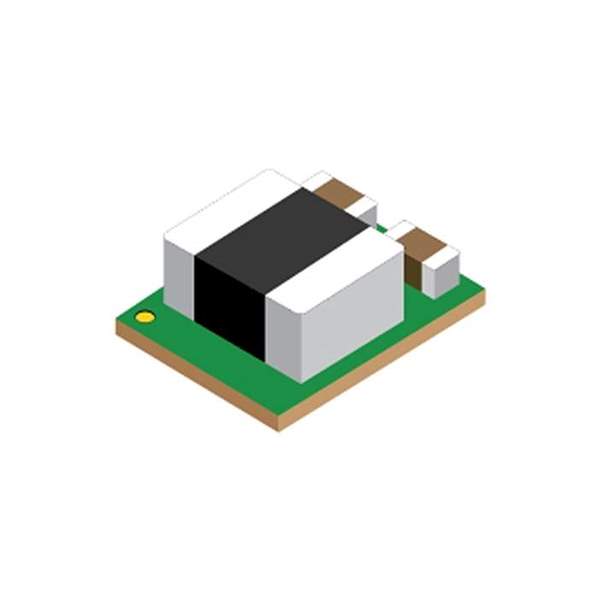

The LMZM23601SILT from Texas Instruments is a highly integrated power solution that combines a step-down DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This power module is designed to simplify power supply design and reduce time-to-market for space-constrained applications.

Key Features

• Integrated Power Solution: The LMZM23601SILT integrates the inductor and passives to provide a compact power supply solution, minimizing the layout area required on the PCB.
• Wide Input Voltage Range: With an input voltage range of 4V to 36V, this module is suitable for a variety of applications, from industrial to automotive systems.
• Adjustable Output Voltage: The output voltage can be adjusted from 2.5V to 15V, allowing for flexibility in different design scenarios.
• High Efficiency: The device offers high efficiency, which helps in reducing power loss and improving system performance.
• Thermal Performance: The QFN package enhances thermal performance, ensuring reliable operation under varying load conditions.
• Protection Features: It includes over-current, over-temperature, and under-voltage lockout protections, enhancing the reliability and longevity of the module.

Applications

The LMZM23601SILT is versatile and can be used in a wide range of applications, such as:

• Industrial and telecom power supplies
• Automotive infotainment and telematics
• Space-constrained applications
• Aftermarket automotive accessories

Design Support

Texas Instruments provides comprehensive design support for the LMZM23601SILT, including evaluation modules, design tools, and technical documentation to assist engineers in integrating this power module into their designs efficiently.

With its robust feature set and compact form factor, the LMZM23601SILT is an excellent choice for designers looking to enhance power density and reliability in their power supply applications.
