The ISO7741DWR from Texas Instruments is a high-performance, quad-channel digital isolator designed to provide robust signal isolation for a wide range of applications. This device utilizes TI's proprietary silicon dioxide (SiO2) insulation barrier to achieve high isolation ratings and to ensure reliable operation under extreme conditions.

With its four isolated channels, the ISO7741DWR offers two forward and two reverse-direction channels, making it ideal for bidirectional communication in industrial automation systems, medical equipment, and other safety-critical applications. Each channel is capable of supporting data rates up to 100 Mbps, ensuring high-speed data transmission with minimal propagation delay.

The ISO7741DWR is characterized by its low power consumption and extended temperature range, operating efficiently from -40°C to +125°C. This makes it suitable for harsh industrial environments where energy efficiency and reliability are of paramount importance. Additionally, the device is equipped with fail-safe features that ensure a default output state in the absence of input power, thereby enhancing the safety of the overall system.

Key features of the ISO7741DWR include:

• Quad-channel isolation: Two forward and two reverse-direction channels.
• High data rates: Supports up to 100 Mbps.
• Robust isolation barrier: Utilizes TI's SiO2 insulation technology.
• Low power consumption: Optimized for energy efficiency.
• Wide temperature range: Operates between -40°C to +125°C.
• Fail-safe outputs: Ensures safe default state.

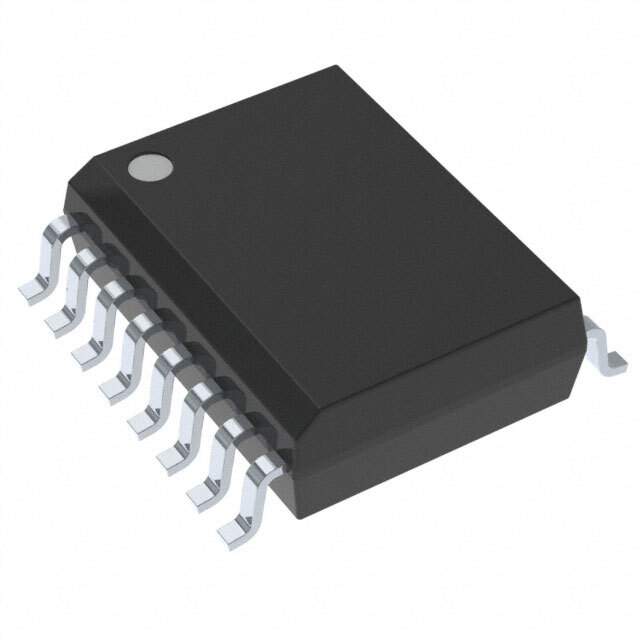

For easy integration into existing designs, the ISO7741DWR comes in a compact 16-pin SOIC package with industry-standard pin configurations. This allows for drop-in replacement and design flexibility. Whether you're designing for industrial control networks, motor control circuits, or need reliable isolation for sensitive analog-to-digital converters, the ISO7741DWR provides a high-quality solution that meets stringent safety and performance criteria.

With its combination of high-speed performance, robust isolation capabilities, and low power operation, the ISO7741DWR from Texas Instruments is an excellent choice for designers looking to enhance the safety and reliability of their digital communication systems.
