Texas Instruments ADS7038IRTER

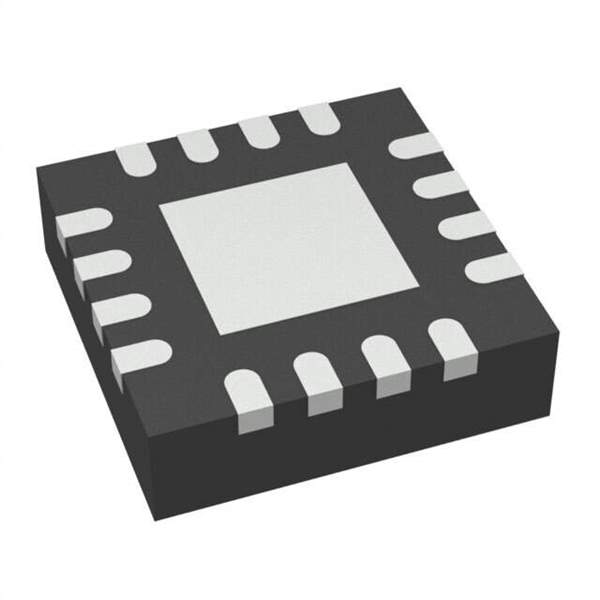

The Texas Instruments ADS7038IRTER is a cutting-edge, ultra-low power, 8-channel, 12-bit analog-to-digital converter (ADC) that offers a remarkable blend of performance and efficiency. With its compact form factor, encapsulated in a small WQFN-16 package, it is an ideal solution for space-constrained applications that require multiple-channel data acquisition.

This high-performance ADC features a wide analog input voltage range and an impressive sampling rate of up to 1 MSPS (mega-samples per second). The ADS7038IRTER operates over a broad supply voltage range from 2.35V to 5.25V, making it versatile for various power environments and ensuring compatibility with both 3.3V and 5V systems.

One of the key features of the ADS7038IRTER is its integrated multiplexer (MUX), which allows for the selection of eight single-ended input channels or four differential pairs, providing flexibility in signal acquisition. This feature is particularly useful in applications such as multi-sensor systems, data loggers, and portable instruments where multiple analog signals need to be monitored simultaneously.

The device is designed with an internal oscillator, eliminating the need for an external clock source, which simplifies the design and reduces the overall component count. Moreover, it includes a temperature sensor that can be used for system-level temperature monitoring or cold-junction compensation in thermocouple applications.

Communication with microcontrollers or digital systems is achieved through an SPI-compatible serial interface, which supports multiple ADS7038IRTER devices on the same bus, enabling scalable designs. The ADC also features an automatic power-down mode that significantly reduces power consumption when not in active conversion, contributing to energy savings in battery-operated devices.

With its robust feature set, the ADS7038IRTER from Texas Instruments is an excellent choice for designers looking to implement precise and efficient multi-channel data acquisition in their next project, whether it's for industrial, medical, or consumer electronics applications.
