Product Overview: ST1480ABDR from STMicroelectronics
The ST1480ABDR is a state-of-the-art transceiver chip designed by STMicroelectronics, one of the industry leaders in semiconductor solutions. This product is a part of the robust and reliable 3.3V low-power half-duplex RS-485/RS-422 transceiver series, which is specifically engineered to address the needs of multi-point data transmission systems.
The ST1480ABDR operates over a wide voltage range from 3.0V to 3.6V, making it extremely versatile for various applications. It is capable of data rates up to 12 Mbps, ensuring fast and efficient communication for industrial, networking, and automation systems. The transceiver contains a driver and a receiver, which feature high ESD protection of ±15kV on the transceiver bus pins, safeguarding the device against electrostatic discharge and enhancing system reliability.
The thermal shutdown and short-circuit protection are integrated features that prevent damage to the device in adverse conditions. The low quiescent current of the ST1480ABDR, even when unloaded or fully loaded but disabled, makes it an energy-efficient choice for power-sensitive designs. Moreover, the transceiver is fully compliant with the TIA/EIA-485A standard, ensuring compatibility with other standard RS-485 devices.

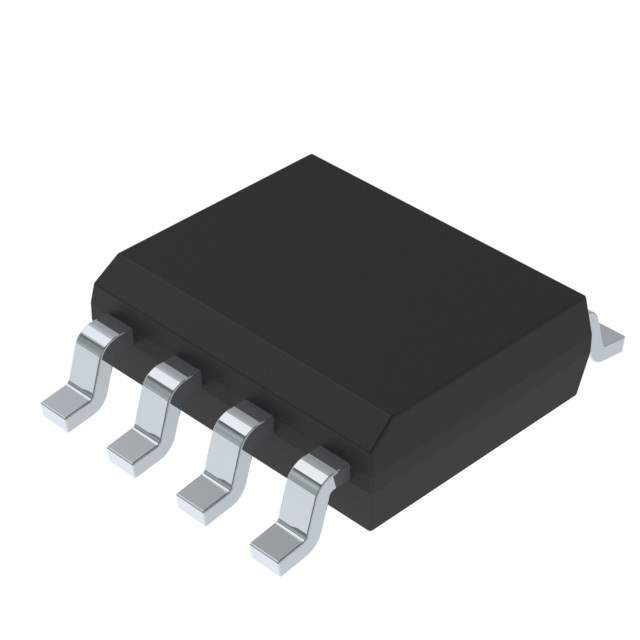

The ST1480ABDR comes in a small 8-pin SOIC package, making it a compact solution for space-constrained applications. Its fail-safe receiver ensures a logic high Rx output if the Rx input is open, shorted, or connected to a terminated transmission line with all drivers disabled, providing additional protection against faulty conditions.
In summary, the ST1480ABDR from STMicroelectronics is a robust and reliable RS-485/RS-422 transceiver, offering high-speed data communication, excellent ESD protection, and energy efficiency. Its compliance with industry standards and protection features make it an excellent choice for designers looking to implement reliable data transmission in their systems.
