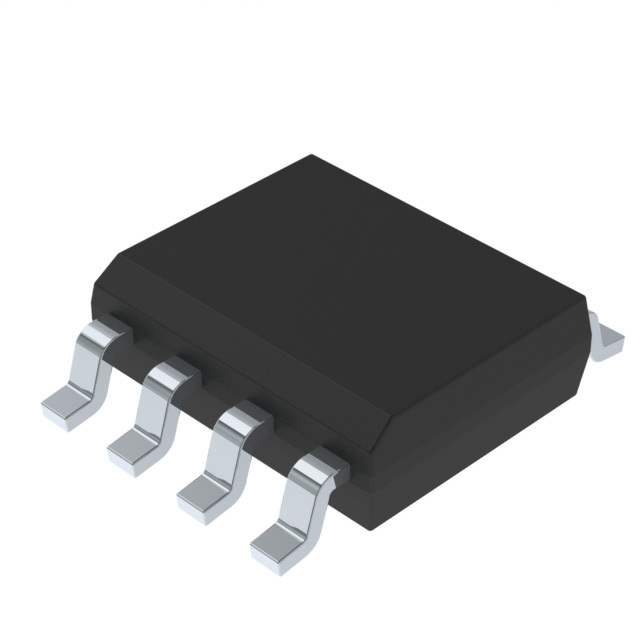

STMicroelectronics E-L9637D013TR Overview
The E-L9637D013TR is a high-performance monolithic bus driver designed by STMicroelectronics, which is crafted to provide efficient interfacing in automotive diagnostic applications. This integrated circuit is specifically tailored for K-Line communications in vehicle diagnostics, conforming to ISO 9141 and ISO 14230 protocols. The device is housed in a robust SO-8 package, ensuring a compact footprint for space-conscious applications.
Key Features
- ISO 9141 and ISO 14230 Compliant: The E-L9637D013TR is designed to meet the requirements of the automotive industry's standard diagnostic systems.
- Wide Supply Voltage Range: It operates over a broad supply voltage range from 4.75V to 5.25V, making it versatile for various automotive power environments.
- High Output Current Capability: The device can deliver up to 150 mA of output current, ensuring reliable communication even in demanding situations.
- Thermal Protection: It includes thermal shutdown protection to prevent damage from overheating, ensuring long-term reliability.
- Low Standby Current: With a low standby current, the E-L9637D013TR helps in reducing the overall power consumption of the system.
Applications
The E-L9637D013TR is ideal for a range of automotive applications, particularly in the realm of vehicle diagnostics and communications. Its robust design and adherence to industry standards make it a reliable choice for:
- Diagnostic communication over K-Line
- Automotive ECU (Engine Control Unit) interfacing
- On-board diagnostic (OBD) systems
Quality and Reliability
STMicroelectronics is known for its commitment to quality, and the E-L9637D013TR is no exception. It is manufactured using state-of-the-art processes and is subjected to rigorous testing to ensure it meets the high standards expected for automotive applications. The device's reliability is further enhanced by its built-in protection features, making it a trusted component in safety-critical automotive systems.
Ordering Information
The product is available in tape and reel packaging, with the suffix 'TR' indicating its readiness for automated assembly processes. For ordering, the complete part number E-L9637D013TR should be used to ensure accurate specification of this K-Line transceiver.
