Overview of Product NRVTS260ESFT1G from ON Semiconductor
ON Semiconductor's NRVTS260ESFT1G is a state-of-the-art Schottky Barrier Rectifier designed for high-efficiency power management applications. This robust and compact device is engineered to provide low forward voltage drop and high surge current capability, making it an ideal component for use in a variety of electronics such as power supplies, converters, and automotive systems.
Key Features
- Low Forward Voltage Drop: The NRVTS260ESFT1G boasts a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation.
- High Surge Current Capability: With its ability to handle high surge currents, this rectifier is well-suited for applications that experience transient overcurrent conditions.
- Power Dissipation: Rated at 1.25 Watts, the device is capable of dissipating a significant amount of power, contributing to its overall robustness and reliability.
- Environmental Resilience: The NRVTS260ESFT1G is designed to perform reliably in harsh environmental conditions, making it suitable for automotive and industrial applications.
- Lead-Free and RoHS Compliant: Adhering to modern environmental standards, this product is lead-free and complies with the Restriction of Hazardous Substances (RoHS) directive.
Applications
The versatility of the NRVTS260ESFT1G allows it to be used across a wide range of applications. It is particularly useful in:
- DC-DC converters
- Automotive applications
- Power supply modules
- Freewheeling diodes
- Reverse battery protection circuits
Technical Specifications

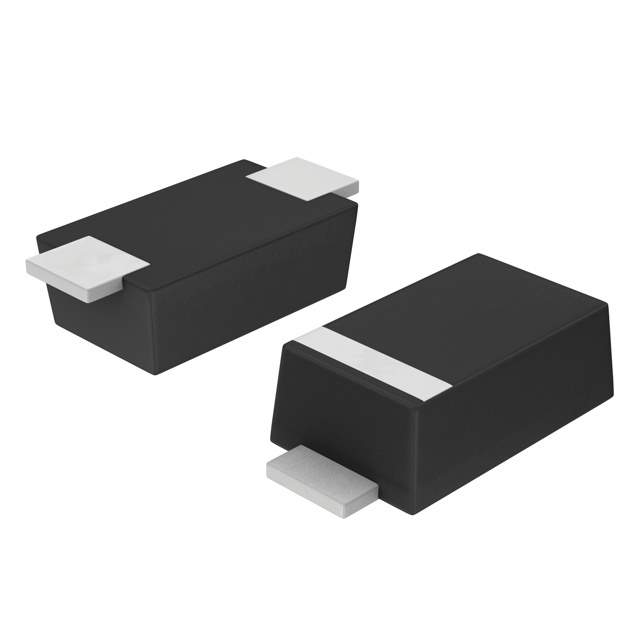

The NRVTS260ESFT1G is packaged in a compact SOD-123FL package, optimizing board space without compromising performance. It has a maximum repetitive reverse voltage (Vrrm) of 60V and a forward continuous current (If) of 2A. Its operating junction temperature range is from -55°C to 150°C, which ensures stability across a wide thermal spectrum.
With its combination of efficiency, durability, and environmental compliance, the NRVTS260ESFT1G from ON Semiconductor is an excellent choice for designers looking to enhance the performance and reliability of their power management systems.
