The MBRS1100T3G from ON Semiconductor is a highly efficient, surface-mount Schottky Barrier Rectifier designed for applications requiring low voltage, high-frequency rectification, or freewheeling in power management designs. This state-of-the-art rectifier is well-suited for use in switch-mode power supplies, converters, freewheeling diodes, OR-ing diode, and reverse battery protection.

Key Features

• Low Forward Voltage Drop: The device features a low forward voltage drop, which reduces power loss and improves efficiency, especially in low voltage applications.
• High Surge Capacity: It can handle high surge currents, making it ideal for applications that require a robust diode capable of withstanding transient over-voltage conditions.
• Guardring for Stress Protection: The inclusion of a guardring significantly enhances the device's reliability by providing protection against voltage spikes and stress events.

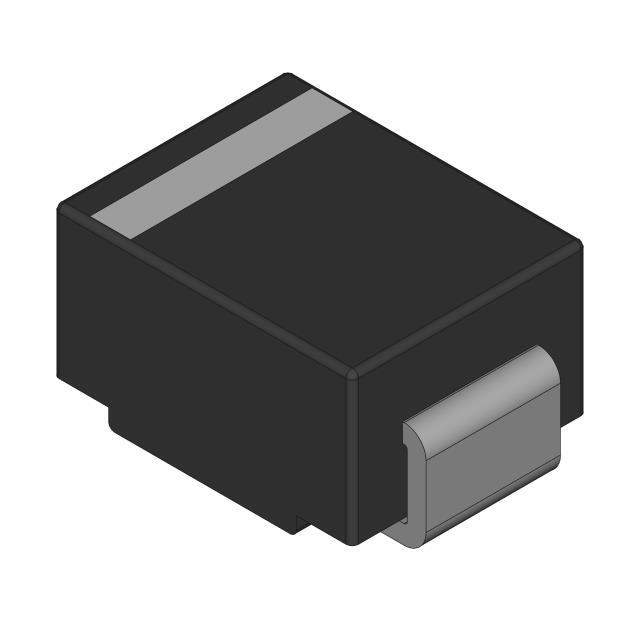

• Power and Space Efficiency: The compact SMB package allows for a smaller PCB footprint, while still offering excellent power dissipation characteristics.
• Lead-Free Finish: The MBRS1100T3G has a lead-free finish, making it RoHS compliant and suitable for use in environmentally sensitive applications.
• Automotive Qualification Standard: The device is suitable for automotive applications requiring specific change control; this is reflected in its compliance with the AEC−Q101 standard.

Applications

The MBRS1100T3G is versatile and can be used in various applications, including:

• DC/DC converters
• AC/DC power supplies
• Automotive systems
• Power distribution systems
• LED lighting
• Telecommunication equipment

Electrical Characteristics

With a maximum average forward rectified current of 1.0 A and a peak repetitive reverse voltage of 100 V, the MBRS1100T3G is capable of meeting the requirements of a broad range of electronic circuits. Its operating junction temperature range from -55°C to +150°C ensures stability and performance under extreme conditions.

ON Semiconductor's commitment to quality and performance is evident in the MBRS1100T3G Schottky Barrier Rectifier, making it a reliable choice for designers and engineers seeking efficiency and durability in their power management solutions.
