The PRTR5V0U2X,215 is a high-performance, dual-line ESD protection device from NXP Semiconductors, designed to safeguard sensitive electronic components against electrostatic discharge (ESD) and other voltage-induced transient events. This robust component is an ideal choice for ensuring the reliability and longevity of your electronic applications.

Key Features

• ESD Protection: The device offers exceptional ESD protection for two lines, capable of withstanding ESD discharges up to ±20 kV (air discharge) and ±15 kV (contact discharge) as per the IEC 61000-4-2 standard, ensuring the safety of your electronic circuits.
• Low Clamping Voltage: With a low clamping voltage, the PRTR5V0U2X,215 ensures that any transient voltage spikes are quickly suppressed, protecting downstream components from potential damage.
• Low Capacitance: The device features ultra-low line capacitance, making it suitable for high-speed signal lines without compromising signal integrity, which is crucial for applications such as USB 2.0, HDMI, and other high-speed data interfaces.

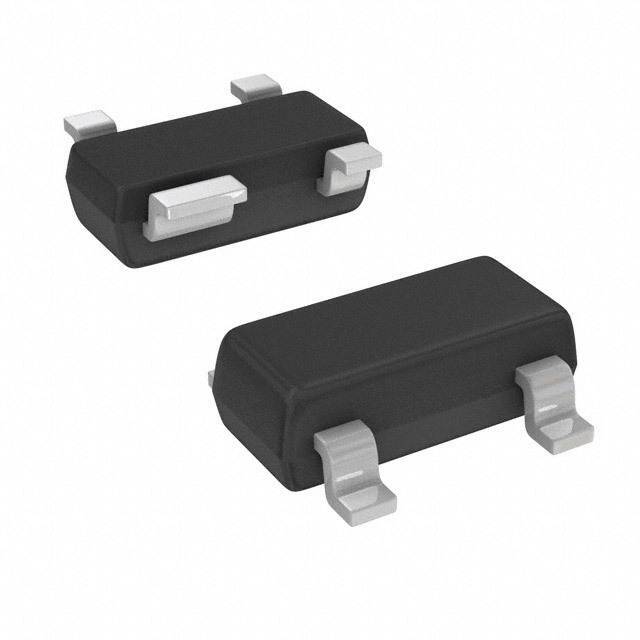

• Small Package Size: Housed in a small SOT-143B surface-mount package, the PRTR5V0U2X,215 minimizes PCB space requirements, which is beneficial for compact electronic designs.
• High Reliability: Designed and manufactured by NXP, a leader in the semiconductor industry, this ESD protection device is built to meet high-quality standards, ensuring reliable performance in a variety of applications.

Applications

The PRTR5V0U2X,215 is versatile and can be used in a wide array of applications where ESD protection is critical. This includes consumer electronics such as smartphones, tablets, and laptops, as well as industrial controls, medical equipment, and automotive electronics. Its low capacitance and high ESD protection levels make it particularly well-suited for protecting high-speed data lines and sensitive digital interfaces.

Product Summary

In summary, the PRTR5V0U2X,215 from NXP Semiconductors is a highly effective solution for protecting sensitive electronic circuits from ESD and other transient voltage events. Its combination of low clamping voltage, low line capacitance, and small package size makes it an excellent choice for designers looking to enhance the durability and reliability of their high-speed digital applications.
