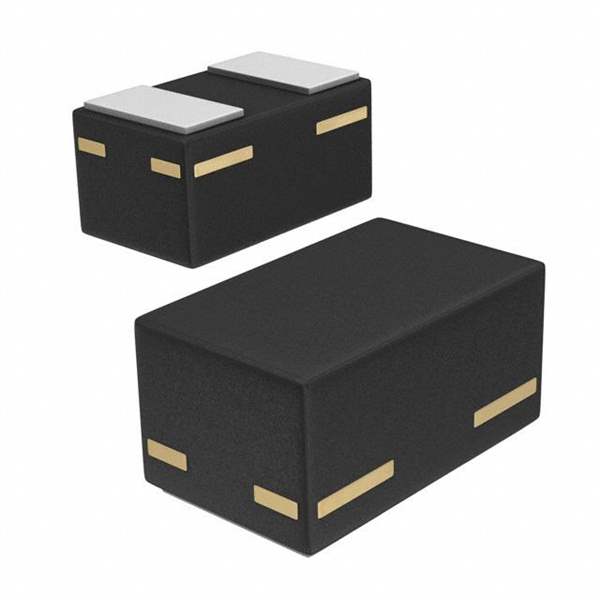

NXP PMEG4002EL,315 Schottky Barrier Diode

The PMEG4002EL,315 from NXP Semiconductors is a high-efficiency, low forward voltage drop Schottky barrier diode that is designed to meet the needs of a wide range of applications. This component is part of NXP's extensive diode portfolio, which is renowned for its high-quality standards and reliability. The PMEG4002EL,315 is particularly well-suited for use in power management functions, including reverse polarity protection, low voltage rectification, and freewheeling applications in various electronic devices.

Key Features

• Low Forward Voltage: The diode's low forward voltage drop (Vf) helps in reducing power loss and improving efficiency, which is critical for battery-powered devices.
• High Current Capability: With a forward current rating of 2 A, this diode can handle significant current, making it suitable for a broad range of applications.
• Low Reverse Leakage Current: The PMEG4002EL,315 exhibits low leakage current, which minimizes power loss when the diode is in the reverse-biased state.
• Small Form Factor: Encased in a small SOD882L surface-mount package, it is ideal for space-constrained applications.
• High Maximum Junction Temperature: The diode can operate at junction temperatures up to 150°C, allowing for usage in high-temperature environments.

Applications

The PMEG4002EL,315 is versatile and can be used in a variety of electronic circuits. Some common applications include:

• DC-DC converters
• Power supplies
• Solar cells
• Battery charging circuits
• Automotive applications
• Portable devices and smartphones

Reliability and Quality

NXP Semiconductors is known for its commitment to quality, and the PMEG4002EL,315 is no exception. It is manufactured using a robust process that ensures high reliability and performance consistency. The diode's construction is RoHS compliant and free from environmentally harmful substances, making it a suitable choice for eco-friendly products.

Whether you are designing a power supply, optimizing the power efficiency of a portable device, or seeking a reliable component for automotive electronics, the PMEG4002EL,315 Schottky barrier diode from NXP is an excellent choice that combines efficiency, compactness, and durability.
