The PESD1CAN,215 is a cutting-edge ESD protection device designed and manufactured by NXP Semiconductors. This product is specifically tailored to safeguard CAN (Controller Area Network) bus lines from the detrimental effects of Electrostatic Discharge (ESD), providing robust security for automotive and industrial networking applications.

Key Features

• High ESD protection level: The PESD1CAN,215 offers an exceptional ESD protection level, capable of withstanding electrostatic discharges up to 24 kV, ensuring the integrity and reliability of the CAN bus communication lines.
• Low clamping voltage: This device features a low clamping voltage, which is essential for protecting sensitive electronics against transient voltage spikes that can occur during ESD events.
• Low capacitance: With a low capacitance design, the PESD1CAN,215 minimizes signal attenuation, ensuring high-speed data integrity without compromising on the protection.
• Single-line bidirectional ESD protection: It provides bidirectional protection for one data line, making it a compact and efficient solution for CAN bus systems.
• Automotive qualification: The device is qualified for use in automotive applications, adhering to the rigorous standards of the industry for reliability and performance under harsh conditions.

Applications

The PESD1CAN,215 is ideal for a wide range of applications where CAN bus lines are employed and ESD protection is critical. This includes:

• Automotive networks, such as in-vehicle infotainment and body control modules.
• Industrial control systems where CAN is used for communication between various sensors and actuators.
• Networking equipment that relies on CAN for robust, low-latency communication.

Package and Quality

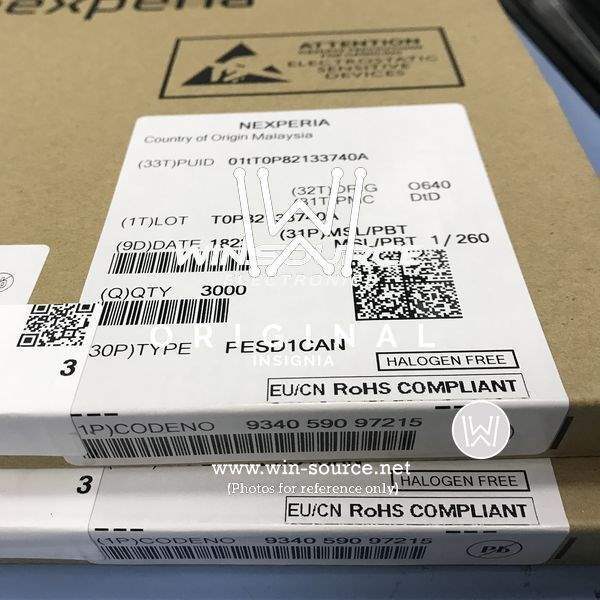

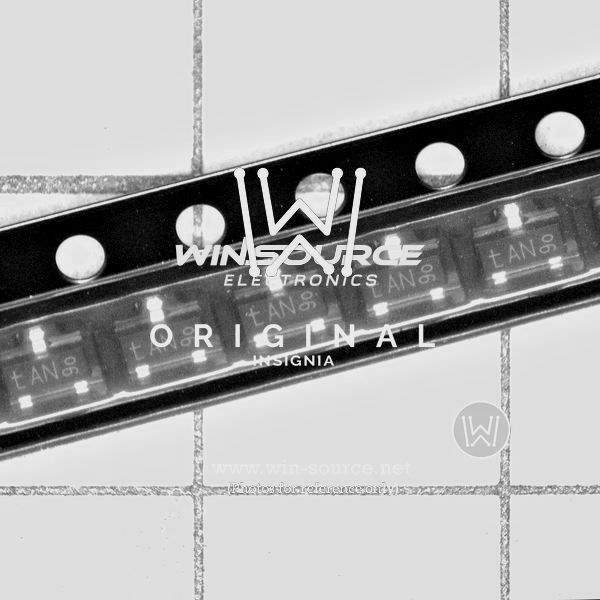

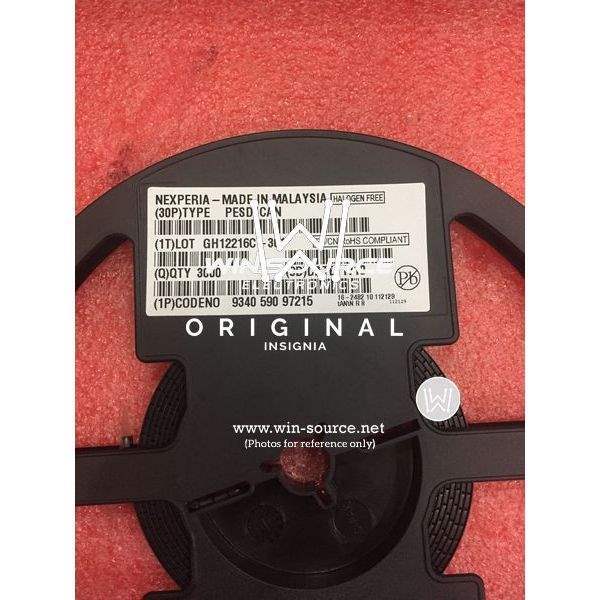

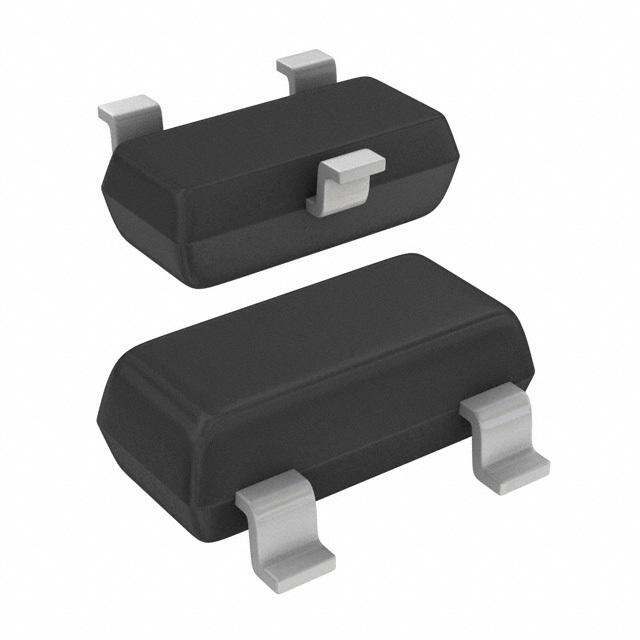

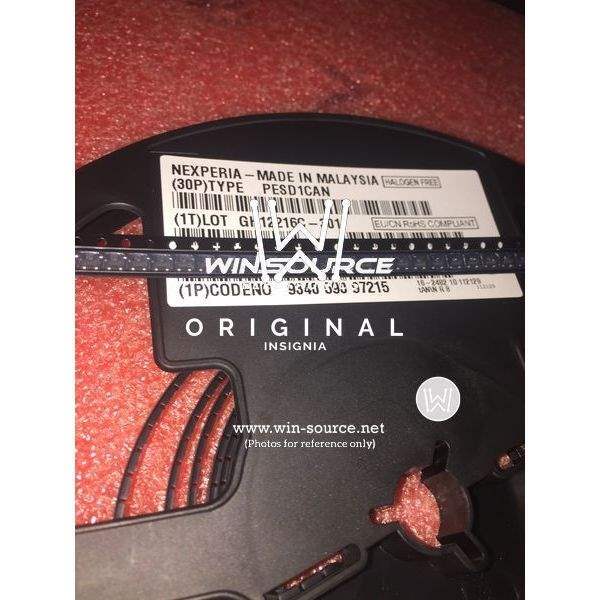

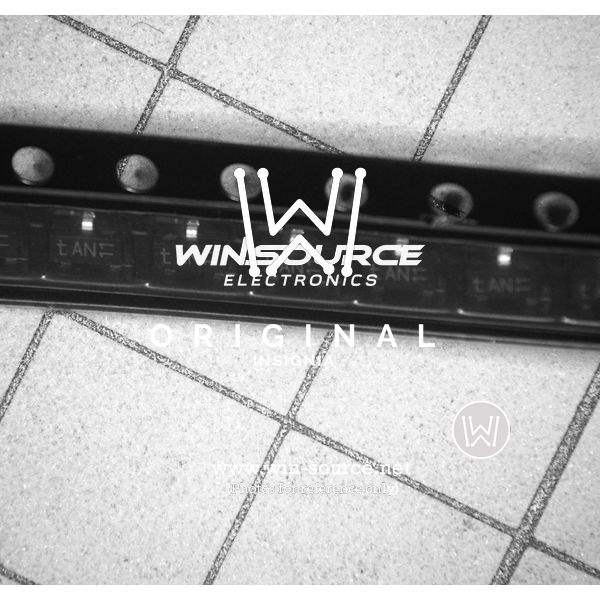

The PESD1CAN,215 comes in a SOD323 (SC-76) package, which is a small and leadless package, making it suitable for space-constrained applications. The product is provided in tape and reel packaging, facilitating efficient assembly during the manufacturing process. NXP's commitment to quality ensures that each device meets the highest standards for performance and durability.
