Microchip Technology MCP4912T-E/ST Digital-to-Analog Converter

The MCP4912T-E/ST is a high-performance, dual-channel 10-bit Digital-to-Analog Converter (DAC) component manufactured by Microchip Technology, a leading provider of microcontroller, mixed-signal, analog, and Flash-IP solutions. Designed to deliver precision and efficiency, this DAC is ideal for a wide range of applications that require accurate analog output from digital signals.

Key Features:

• Resolution: The MCP4912T-E/ST offers a 10-bit resolution, providing fine-grain control over the analog output, which is essential for applications that demand high levels of precision.
• Dual Channel: With two independent DAC channels, this device allows for simultaneous output of two analog signals, which can be beneficial for systems requiring multi-signal control.
• Interface: It features a Serial Peripheral Interface (SPI) that ensures fast data communication and easy interfacing with most microcontrollers and processors.
• Supply Voltage: Operating on a 2.7V to 5.5V supply voltage, the MCP4912T-E/ST is versatile and can be integrated into both low and standard voltage applications.

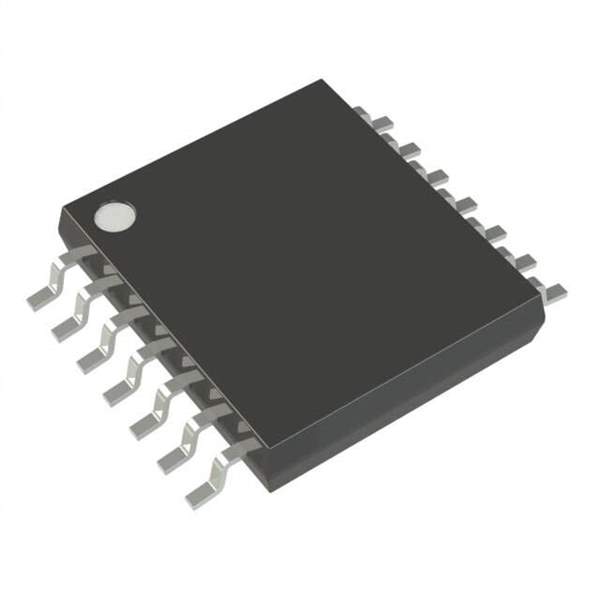

• Package: The device comes in a TSSOP (Thin Shrink Small Outline Package) with 14 pins, which is known for its compact footprint and suitability for space-constrained applications.
• Extended Temperature Range: It is capable of operating within an industrial temperature range of -40°C to +125°C, making it reliable in harsh environments.

Applications:

The MCP4912T-E/ST is well-suited for a variety of applications, including but not limited to:

• Automotive systems
• Data acquisition systems
• Portable instrumentation
• Process control and automation
• Audio and video equipment

With its precision performance and robust feature set, the MCP4912T-E/ST from Microchip Technology stands out as an excellent choice for designers and engineers looking to bridge the gap between digital systems and analog world. Whether it's for industrial, automotive, or consumer electronics, this DAC offers a reliable and efficient solution for digital-to-analog conversion needs.
