Microchip Technology MCP23S17T-E/SO

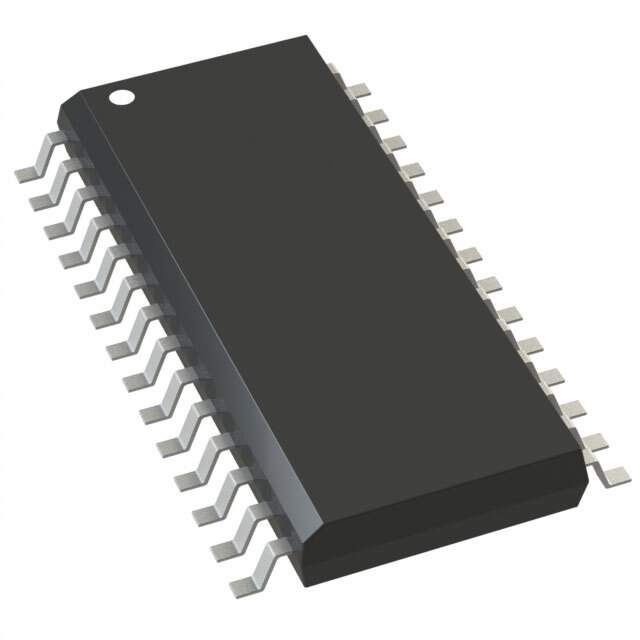

The MCP23S17T-E/SO is a robust, versatile 16-bit I/O expander from Microchip Technology, designed to provide additional input/output capability to an embedded system through a Serial Peripheral Interface (SPI). This particular model is housed in a small-outline (SO) package, making it suitable for space-constrained applications.
Key Features:
- Interface: The device operates via an SPI interface, ensuring high-speed communication with microcontrollers or processors, with clock speeds up to 10 MHz.
- I/O Expansion: It offers 16 additional general-purpose I/O pins, which can be individually configured as input or output, providing significant expansion for systems with limited GPIOs.
- Interrupt Output: The MCP23S17T-E/SO includes configurable interrupt output pins which can be triggered by changes on the input pins, allowing for efficient event-driven programming.
- Addressing: Up to eight devices can share the same SPI bus through hardware address pins, allowing for a total of 128 additional I/Os.
- Operating Voltage: The device supports a wide range of supply voltages from 1.8V to 5.5V, making it compatible with most logic levels and suitable for both 5V and 3.3V systems.
- High-Temperature Operation: With an operational temperature range of -40°C to +125°C, it is designed to perform reliably in extreme environments.
Applications:
The MCP23S17T-E/SO is ideal for a variety of applications where additional I/Os are needed. It is commonly used in:
- Industrial control systems
- Home automation systems
- Robotics and embedded systems
- PLC (Programmable Logic Controllers)
- Server and telecom I/O expansion
Quality and Reliability:
Microchip Technology is known for its high-quality products, and the MCP23S17T-E/SO is no exception. It is built to meet stringent quality standards, ensuring reliable performance and longevity in a variety of demanding applications.
