Specifiche prodotto

Categorie Integrated Circuits
Costruttore Maxim Integrated
Imballaggio Tube/Rail
Stato Active
Tipo Transceiver
Protocollo RS422, RS485
N. di driver/ricevitori 1/1
Duplex Half
Isteresi del ricevitore 70mV
Velocità dati 250kbps
Tensione di alimentazione - Esercizio 4.75 V to 5.25 V
Intervallo di temperatura - Esercizio 0°C to 70°C
Montaggio SMD (SMT)
Contenitore/involucro 8-SOIC
Condizione di conservazione Dry storage cabinet & Humidity protection package
Codice Articolo Win Source 021800-MAX487ECSA+
Parte di uso comune? Yes
Popolarità High
Rischio di contraffazione sul mercato aperto 48 pct.
Stato della domanda e dell'offerta Limited
Modello 3D Ultra Librarian Ultra Librarian MAX487ECSA+ Modello CAD

Descrizione

Maxim Integrated MAX487ECSA+ Transceiver Overview

The MAX487ECSA+ from Maxim Integrated is a low-power transceiver designed for RS-485 and RS-422 communication. It is a highly integrated solution that provides bidirectional communication capabilities for half-duplex and full-duplex applications. With its robust design, the MAX487ECSA+ is suitable for industrial environments where reliable data transmission is critical.

Key Features

  • Electrical Interface: The device supports RS-485/RS-422 communication standards, ensuring compatibility with a wide range of industrial networks.
  • Low Quiescent Current: It operates with a very low supply current, typically 120µA, making it ideal for power-sensitive applications.
  • Extended Temperature Range: The MAX487ECSA+ is designed to operate over a wide temperature range from -40°C to +85°C, suitable for harsh environmental conditions.
  • High Speed: Capable of data rates up to 2.5Mbps, it can handle high-speed data transmission requirements.
  • Integrated Protection: The device includes fail-safe circuitry that guarantees a logic-high receiver output when the receiver inputs are open or shorted, or when they are connected to a terminated transmission line with all drivers disabled.
  • Low Power Shutdown Mode: An optional receiver and driver shutdown mode further reduces the supply current to less than 5µA, enhancing power conservation in idle periods.
  • Pin-Compatible Upgrades: The MAX487ECSA+ is part of a family of transceivers that are pin-compatible, making it easy to upgrade existing designs.
  • ESD Protection: It includes enhanced electrostatic discharge (ESD) protection up to ±15kV, making it robust against transient voltage spikes.

Applications

The MAX487ECSA+ is ideal for a variety of applications within the industrial, telecommunication, and automation sectors. It is commonly used in networked devices such as factory automation controllers, security systems, building automation, and other data communication systems that require reliable data transmission over long distances or in noisy environments.

Package and Quality

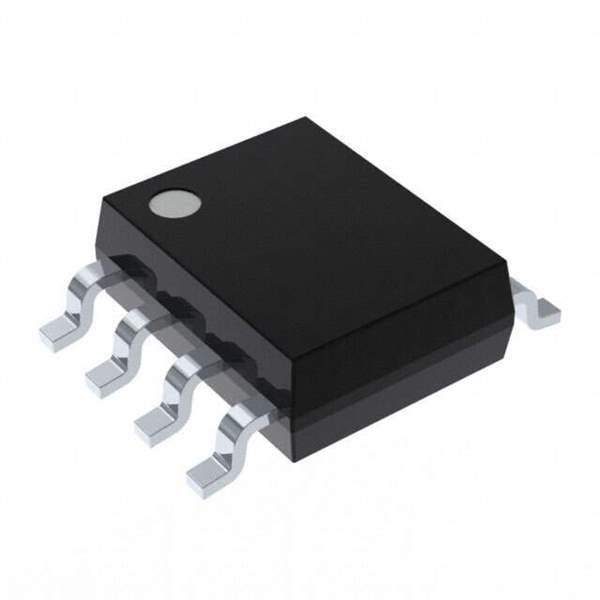

This transceiver comes in a narrow 8-pin SOIC package, providing a compact footprint for space-constrained applications. Maxim Integrated ensures high-quality standards, making the MAX487ECSA+ a reliable choice for critical communication systems.
