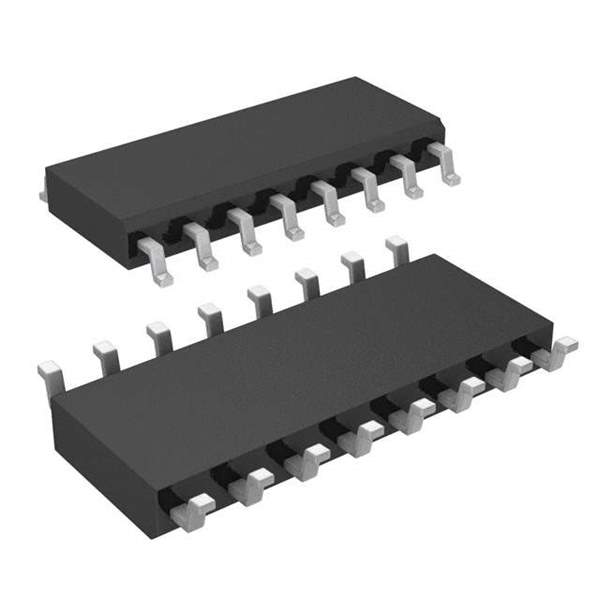

Maxim Integrated's MAX232ESE+ RS-232 Interface IC
The MAX232ESE+ from Maxim Integrated is a highly-reliable, dual driver/receiver that includes a capacitive voltage generator to supply RS-232 voltage levels from a single 5V supply. This integrated circuit (IC) is designed to interface between a TTL/CMOS logic level and RS-232 serial communication protocol. It is widely used in applications requiring serial communications, such as industrial controls, telecommunications equipment, and consumer products that utilize a serial port for diagnostics or control.
Key Features
- Integrated Charge Pump Circuitry: The charge pump and four small external capacitors allow the MAX232ESE+ to convert the 5V input to the ±10V required for RS-232 transmission, eliminating the need for additional power supplies.
- Dual Driver/Receiver Pairs: The device contains two drivers and two receivers, supporting full-duplex communication and making it suitable for a variety of bidirectional transmission applications.
- Improved ESD Protection: The MAX232ESE+ is equipped with enhanced Electrostatic Discharge (ESD) protection up to ±15kV, ensuring robust performance and reliability in harsh environments.
- Low Power Consumption: This IC is optimized for low power consumption, which is critical for battery-operated and power-sensitive applications.
- High Data Rate: It supports data rates up to 120kbps, allowing for efficient data transfer in applications requiring moderate speed.
Applications
- Serial data communication in personal computers
- Interface for modem connections
- Industrial control systems
- Point-of-sale (POS) terminals
- Diagnostic ports in consumer electronics
The MAX232ESE+ comes in a 16-pin Narrow SO package, providing a compact footprint for space-constrained applications. The device's industry-standard pinout and the fact that it is a drop-in replacement for many other standard RS-232 interface ICs make it an easy choice for designers looking to implement or upgrade their serial communication capabilities. Maxim Integrated's commitment to quality ensures that the MAX232ESE+ delivers consistent performance and reliability, making it a trusted component in any RS-232 communication design.
