Maxim Integrated's MAX15062BATA+T: High-Efficiency, Compact DC-DC Converter

The MAX15062BATA+T is a high-performance, synchronous step-down DC-DC converter module from the renowned semiconductor manufacturer Maxim Integrated. This advanced power solution is designed to deliver efficiency, reliability, and miniaturization for a wide array of applications, including point-of-load conversions, distributed power systems, and portable devices.

Key Features and Benefits

• Wide Input Voltage Range: The MAX15062BATA+T operates with an input voltage range of 4.5V to 60V, making it versatile for various systems and ensuring stable operation even under fluctuating supply conditions.
• High-Efficiency Output: This converter provides an adjustable output voltage from 0.9V up to 0.9 x VIN, which allows for precise voltage regulation tailored to specific circuit requirements. With its high efficiency of up to 92%, it minimizes power loss and heat generation.

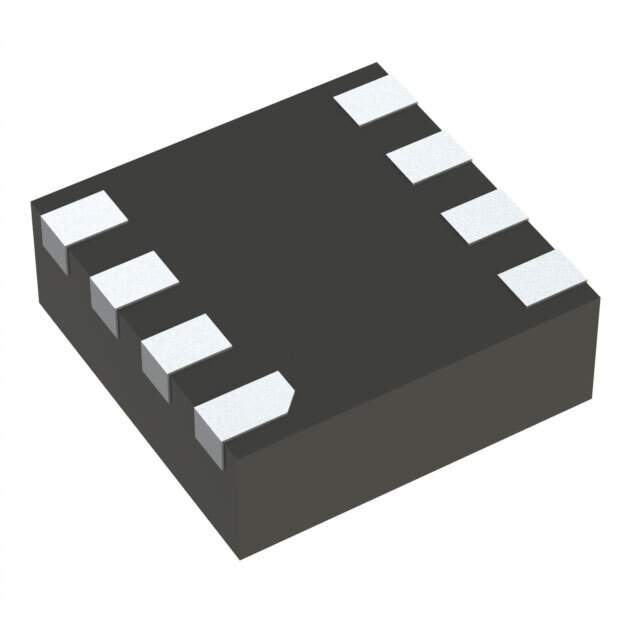

• Compact Solution: The device is available in a tiny 8-pin TDFN package, measuring just 3mm x 3mm. This compact footprint is ideal for space-constrained applications, enabling designers to save precious board space without compromising performance.
• Integrated MOSFETs: The inclusion of internal high-side and low-side MOSFETs simplifies the design and reduces external component count, further contributing to a reduced solution size and increased reliability.
• Protection Features: The MAX15062BATA+T integrates multiple protection features, such as overcurrent protection (OCP), overvoltage protection (OVP), and thermal shutdown, to safeguard the system against potential damage from abnormal operating conditions.
• Adjustable Switching Frequency: With a switching frequency that can be adjusted from 200kHz to 2.2MHz via an external resistor, designers have the flexibility to optimize the converter for efficiency or component size.

Applications

The MAX15062BATA+T is suitable for a broad range of applications, including but not limited to:

• Telecommunications Equipment
• Industrial Power Supplies
• Battery-Powered Devices
• Networking and Data Communication Systems

Maxim Integrated's commitment to quality and innovation is evident in the MAX15062BATA+T DC-DC converter. By integrating advanced features into a small package, this power module exemplifies the company's dedication to providing efficient and compact power solutions for today's demanding electronic environments.
